Basic Info.
Application
Liquid with Suspended Solids, Powder, Viscous Fluid, Liquid
Application Area
Pharmaceutical
Homogenizer Speed
0-3600rpm
Heating Way
Electrical Heating
Cooling Way
Water Cooling
Name
Vacuum Emulsifying Mixer
Key Words
Stainless Steel Mixing Tank
Material
Stainless Steel 304.316
Product Name
Cream Vacuum Emulsifying Mixer
Key Word
Vacuum Cosmetic Emulsifying Machine Homogenizer
Operating type
Cycle Operating
Transport Package
Woodencase
Specification
As specification
Production Capacity
100set/Week
Packaging & Delivery
Package Size
220.00cm * 220.00cm * 250.00cm
Package Gross Weight
2200.000kg
Product Description

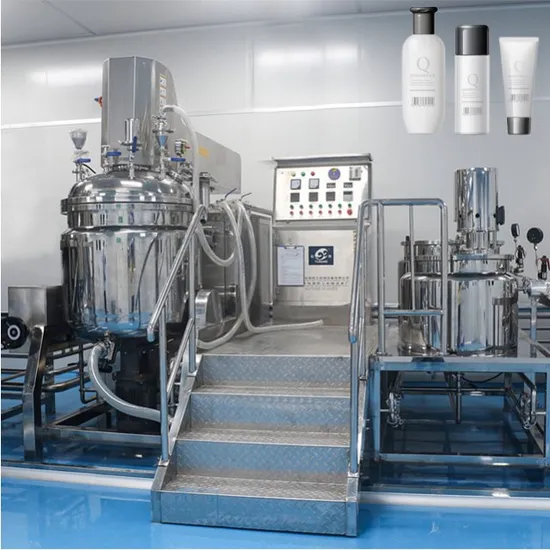

vacuum cosmetics emulsifying mixer ointment cream vacuum emulsifying mixer
Product Description
Cosmetic cream vacuum emulsion homogenizer small lotion mixer cosmetic machinemainly refers to the material in a vacuum state, using a high shear homogenizer to quickly and uniformly distribute one phase or multiple phases in at least one other continuous phase (aqueous phase, oil phase, powder, etc.) The strong kinetic energy makes the material in the gap between the stator and the rotor, and it can withstand hundreds of thousands of times of high-speed shearing, centrifugal crushing and impact tearing every minute, and evenly disperse the emulsification instantaneously. After high-frequency reciprocation, finally A high quality product with no bubbles and fineness is obtained.
Suitable for
Main Features
1, Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
2, Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
3, Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few production, it can exert homogenizing effect fully;
4, Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut, rubbing, centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
5, Customer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r/min.
Product Parameters
| Model | Main pot | Water pot | Oil pot | Main pot power | Hydraulic System | Vacuum pump power(Kw) |
| Volume(L) | Wall scraping | Homogenizer |
| RHJ-5L | 5L | | | 0.18 | 1.1 | 0.75 | 0.55 |
| RHJ-10L | 10L | 7 | 5 | 0.37 | 1.1 | 0.75 | 0.75 |
| RHJ-20L | 20L | 14 | 10 | 0.75 | 1.5 | 0.75 | 0.75 |
| RHJ-50L | 50L | 35 | 25 | 1.1 | 2.2 | 1.5 | 1.5 |
| RHJ-100L | 100L | 70 | 50 | 1.5 | 3 | 1.5 | 1.5 |
| RHJ-200L | 200L | 140 | 100 | 2.2 | 4 | 1.5 | 2.2 |
| RHJ-300L | 300L | 210 | 150 | 3 | 5.5 | 1.5 | 2.2 |
| RHJ-500L | 500L | 350 | 250 | 4 | 7.5 | 1.5 | 2.2 |
| RHJ-1000L | 1000L | 700 | 500 | 5.5 | 11 | 2.2 | 3 |
