Indoor Ceiling Mount Antenna Omnidirectional Service Antenna 3dBi

US$4.50
20-99 Pieces
US$4.00
100+ Pieces

Basic Info.

Model NO.
SG-ICA-3
Gain
3dBi
RF Connector
N-Male or N-Female
Function
Working for Repeater 2g 3G 4G Signal Booster
Transmitting Coverage
100~200 Sqm(M2), 1000~2000 Sq.FT
Warranty
2years
Usage
Communication Antenna, Broadcasting Antenna
Operating Wavelength
Microwave
Material
Al
Directionality
Omnidirectional Antenna
VSWR
1.5~2
Base Antenna
Directional Antenna
Nature of Operation
Transmitting Antenna
Sturcture Form
Wire Antenna
Dimensionality
Two-Dimensional Antenna
Usage Occasion
Home, Office, Shopping Mall, Packing Lot, Boat etc
Transport Package
Neutral Packing
Specification
165*100 mm
Trademark
Sigbari
Origin
China
HS Code
8517707090
Production Capacity
5000PCS/Week

Packaging & Delivery

Package Size
70.00cm * 45.00cm * 45.00cm
Package Gross Weight
15.000kg

Product Description

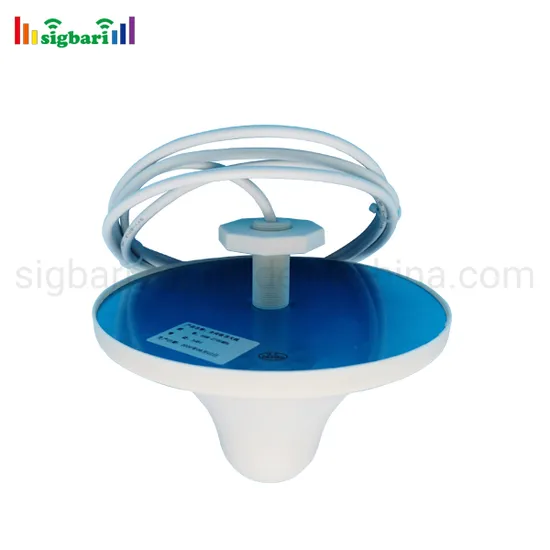

Indoor Ceiling Mount Antenna Omnidirectional Service Antenna 3dBi
2g 3g 4g ceiling Antenna Specification
Electrical Parameters
Model SG-ICA-3
Frequency Range 698-960 / 1710-2700 MHz
Gain 2 / 3 dBi
Horizontal-3dB Beamwidth 360°
Vertical-3dB Beamwidth 65~80°
VSWR ≤1.5
Input Impedance 50 Ω
Polarization Vertical
Max Input Protection 50 W
Connector N-Female
Lighting Protection DC Ground
Mechanical Parameter
Antenna Dimension Ф165×100 mm
Weight 0.35 kg
Cover Material ABS
Installation ceiling mount
Operating Temperature -40° ~ +60°

Packing information: 20pcs / carton boxes Size:70*35*35cm / Gross weight: 8.5kg
How is 2g 3g 4g ceiling Antenna working for cellphone signal booster?

if any questions or problems plase feel free to contact me, Send me email or chat with me directly for your requirements!
Thx for inquiring-Sigbari!
& you are welcome to visit us!
