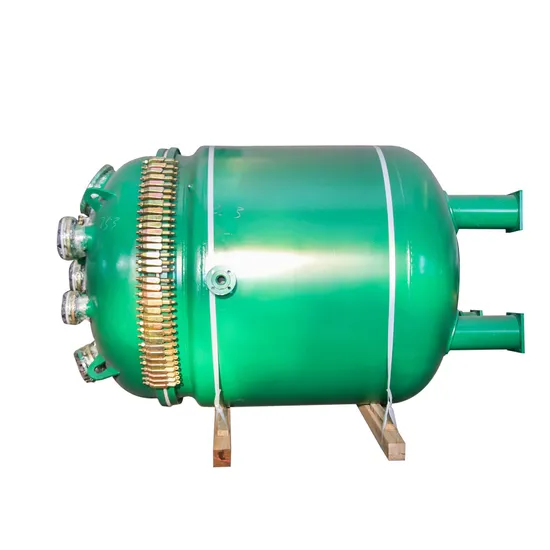

Chemical Equipment Machinery Glass Lined Chemical Reactor 3000L

Product Description

Category: Glass lined reactor
Product specification: 50L-6300L
Product standard: GB25025-2010, GB/T 150-2011
Product use: This glass-lined reactor is mainly used for large-scale chemical and pharmaceutical experiments. This kind of glass-lined reactor is also suitable for precision conditions of medium large-scale production such as chemical industry and pharmaceutical industry. As a hydrolysis, neutralization, crystallization, mixing, emulsification equipment, widely used in chemical, petroleum, medicine, pesticides, food, dyes and other industries.

Series		FK Series
Basic Model		FK50	FK60	FK70	FK80	FK90	FK120	FK130		FK160	FK175
Normal Volume(L)		50	100	200	300	500	1000	1500	2000	3000	5000	6300
Actual Volume(L)		101	179	324	483	744	1612	2168	2626	4118	6276	7242
(MPa)	Body	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4
	Jacket	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6
Area of h.exch (m²)		0.54	0.84	1.5	1.9	2.6	4.54	5.34	7.02	9.3	13.3	15.5
Type of Agitator		Impeller
Agitator(r/min)		130	130	130	130	130	130	130	130	130	130	130
Type of Shaft Seal		212-50	212-50	212-50	212-65	212-65	212-80	212-80	212-80	212-95	212-95	212-95
Reducer(kw)		0.55	0.75	1.1	1.5	2.2	4	4	4	5.5	7.5	7.5
D1(mm)		500	600	700	800	900	1200	1300	1300	1600	1750	1750
D2(mm)		600	700	800	900	1000	1300	1450	1450	1750	1900	1900
H1(mm)		200	235	275	310	335	410	435	435	520	558	558
H2(mm)		400	500	700	800	1000	1200	1400	1745	1810	2328	2730
H3(mm)		1012	1012	1056	1080	1126	1343	1343	1343	1427	1467	1467
H4(mm)		330	380	380	380	480	600	600	600	700	700	700
H5(mm)		70	70	90	100	125	180	180	180	160	150	150
B(mm)		720	808	928	1028	1172	1478	1654	1654	1954	2152	2152
H(mm)		1765	1966	2249	2420	2690	3217	3450	3795	4007	4570	5011
d(mm)		300	360	420	480	540	700	700	700	800	850	850
(mm) Centre Cirde of Vent		350	420	490	560	630	840	910	910	1120	1200	1200
Discharge Valve		DN65/32	DN65/32	DN80/50	DN80/50	DN80/50	DN100/50	DN100/50	DN100/50	DN125/80	DN125/80	DN125/80
(kg)Total Weight		380	415	530	860	1095	1630	2160	2353	3022	4300	4970
Type of Supporting		Lug Support

Series	Shafthole	Manhole, Hand hole	Thermometer hole	Lens hole		Spare hole					Discharge hole	water,Gas inlet out nozzle		Lug Suppo
														Bolt	Center circle
	G	M(H)	T	S1	S2	N1	N2	N3	N4	N5	B	P1	L1-3
FK50	65	80	50	50	50	40					65		20	4-φ24	720
FK60	80	125	80	40	65	65	65				65		20	4-φ24	808
FK70	80	125	80	40	65	65	80				80		20	4-φ24	928
FK80	100	150	100	80	80	80	80				80		25	4-φ24	1028
FK90	100	200	125	100	100	100	125				80		32	4-φ24	1172
FK120	125	300×400	100	00	25	150	125	100	100		100		32	4-φ30	1478
FK130	125	300×400	100	125	125	150	100	125	125		100	50	40	4-φ30	1654
FK160	125	300×400	100	125	125	150	125	100	125		125	65	50	4-φ30	1954
FK175	125	300×400	125	125	125	150	150	125	150		125	65	65	4-φ30	2152

Product features:
1.The open glass lined reactor is a separable cover combined reactor. The lid is fixed on the tank with clips and sealed by gaskets between them.
2. The glass-lined reactor of the specification section is generally suitable for large-scale chemical processes.
3.Because the lid can be separated from the tank, so this type of glass lined reactor has a variety of stirring methods to meet the different process needs of users.
4.Glass lined reactor has remarkable corrosion resistance, impact resistance and temperature fusion resistance characteristics, durable.
5.Open glass lined reactor production process using pipeline technology, reliable quality.
6.The type of open glass lined reaction kettle all use electric furnace firing, porcelain surface clean, should not explode porcelain.
7.After rust removal on the surface of the glass lined reactor, environmentally friendly water-based paint is sprayed to make the product more beautiful and generous.

---
