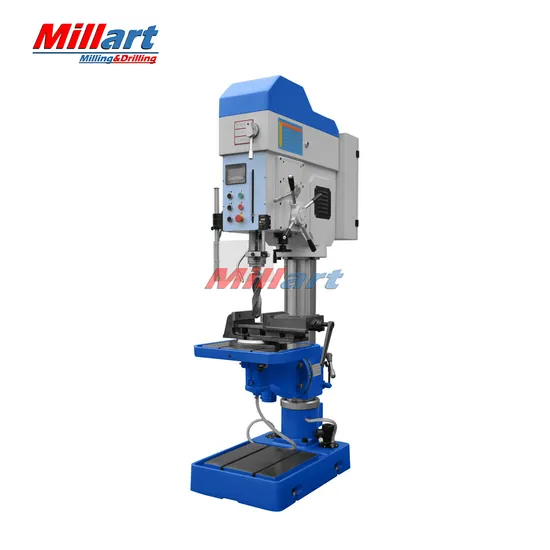

Auto Feeding Drill Press Machine Zwb5030

Product Description

Auto Feeding Drill Press Machine ZWB5030
Features:
Spindle auto feeding
Threading function
Tilting rotary table -45 to + 45 degree
Drilling depth indicator
Electronic spindle and feed rate indicator
High spindle rigidity
Threading by automatic switching of the left turns
Left turn switch
Headstock, column, table and column base made of the highest quality components
Spindle and transmission shafts of hardened and heat treated steel
Top-class electric motor
A large spindle stroke
Readable control panel
Working table automatically lifted with 360 rotation and assembly grooves
Technical paramter:

Model	ZWB5030
Max drilling capacity	30 mm
Max threading capacity	M20
Column diameter	120 mm
Spindle stroke	135 mm
Distance from spindle to column	320 mm
Distance from spindle to table	540 mm
Distance from spindle to base	1110 mm
Spindle taper	MT4
Spindle speed	50-300/300-2500 r/min
Spindle feed rate	21-213 mm/min
Table size	420 x 360 mm
Base size	400 x 390 mm
Main motor power	1.5 kw
Feed motor power	90w
Coolant motor power	40 w
Weight	510/560 kg
Packing size	96x50x195 cm

Standard accessories:
Drill chuck
Tapper sleeve
Wrench
Optional accessories:
Safety guard
Vice

---
