Product Description
Product Description

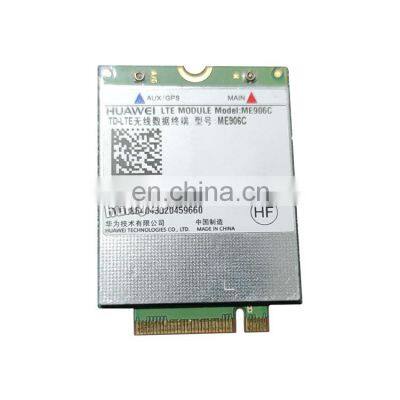

Description• ME906C is new designed LTE module with M.2/NGFF form factor which could support LTE FDD band 1/3/8 & TDD band 38/39/40/41. ME906C Module is especially for consumer electronics devices such as Notebook, Ultrabook, Tablet, Chrome book etc...• ME906C is an LTE category 3 Module which supports peak download speed to 100mbps on FDD and speed to 68Mbps on TDD. It's backward with DC-HSPA+/TD-SCDMA/GSM/GRPS/EDGE. ME906C specs are very similar to ME906E Module. Technical Specifications• Model number: ME906C• Manufacturer: • Form Factor: 75-pin M.2/NGFF• Bands- LTE TDD:B38,B39,B40,B41- LTE FDD:B1,B3,B8- HSPA+:B1,B2,B5,B8- TD-SCDMA:B34,B39- GSM/GPRS/EDGE: B2,B3,B8• Data Transfer Rates- TDD LTE:Cat3 (61/18Mbps)- FDD LTE:Cat3 (100/50Mbps)- TD-SCDMA (384/384kbps)- TD-HSPA+(4.2/2.2Mbps)- DC-HSPA+ :(42/5.76Mbps)Interface- Antenna interface- 50 ohm antenna connector- USB 2.0 full speed- Power supply- USIM Card (1.8V/3.0V)• Power Supply: 3.135 V to 4.4 V (typical: 3.3 V)• Voice: N/ATemp Range- Normal Operation: -10℃ to 55℃- Extended Operation: -20℃ to 70℃Approvals- CCC- Jate- Telec- NCC• Dimensions (L × W × H): 42 mm × 30 mm × 2.3 mm• Weight: around 6gWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
