| US$11,600.00-13,300.00 | 1 Set (MOQ) |

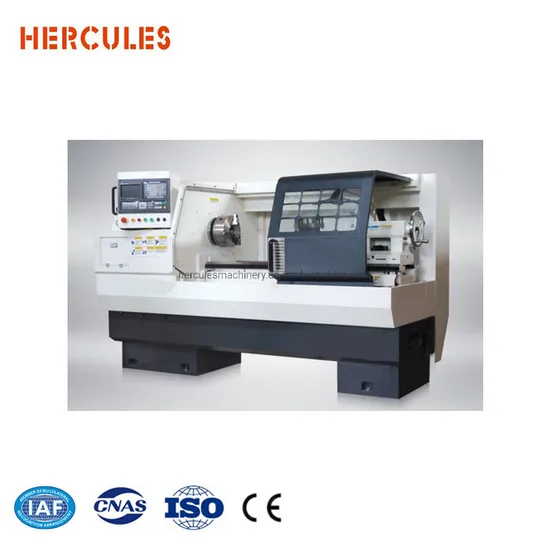

| Specification | Unit | CK6140S | Product Features | |
| Max.swing diameter over table | mm | Φ420 | *Simple operation,ergonomic design,low maintenace costs. *Use the foot of the bes and fully enclosed protective structure as a whole,the complete machine rigidity,High Machining Precision,waterproof and dustproof performance is much better than similar produucts. *Applicable to the processing of the various axes,and complex shape parts in bulk,more suitable for high accuracy and consistency of size requierments of a large number of parts. | |
| Max.swing diameter over carriage | mm | Φ230 | ||
| Width of guide rail | mm | 350 | ||
| Distance between centers | mm | 750 | ||
| Effective working travel | X axis | mm | 230 | |
| Z axis | mm | 750 | ||
| Spindle | head model | A2-6 | ||
| head Taper hole | M.T.#6 | |||
| bore diameter | mm | Φ66 | ||
| rotation speed | r/min | 2000(Requirements2000-3000,need Replace Chuck) | ||
| Tool | Tool-station | Four working or six | ||
| Tool size | mm | 25X25 | Standard equipment | |
| Tailstock | Tail type | manual | Auto lubrication system A full range of technical information Electric cooling system Fully enclosed-safety system Eletric control system Electric Four Tool-station Frequency conversion stepless adjustment of spindle CNC system,AC servo drive | |
| Tailstock quill diameter | mm | Φ60 | ||
| Tailstock sleeve taper hole | M.T.#4 | |||
| Travel of tailstock sleeve | 100 | |||
| Main Motor | Motor | kW | 5.5 | |
| X Axis motor | kW | 0.5 | ||
| Z Axis motor | kW | 1 | ||
| Coolant motor | W | 120 | ||
| Dimension(L*W*H) | mm | 2805X1700X2000 | ||
| Net weight | kg | 1800 | ||
| Hercules Machinery Equipment Ltd. | ||||
