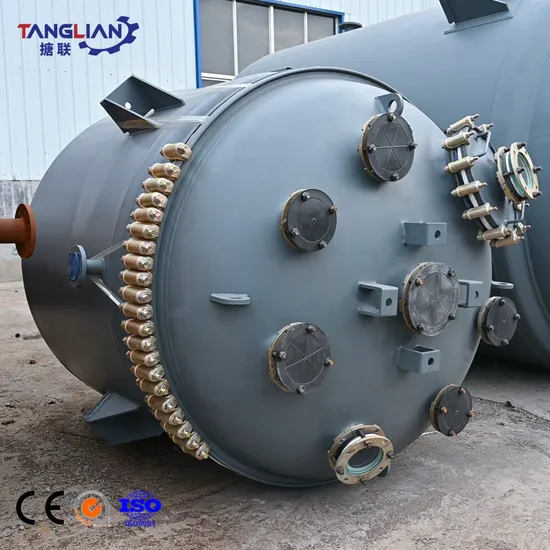

Chemical Pharmaceutical PTFE Lined Reaction Kettle/Mixing Tank

Product Description

Owing to its low friction, PTFE is used for plain bearings, gears, slide plates, seals, gaskets,bushings and more applications with sliding action of parts, where it outperforms acetal and nylon.
Besides, as one kind of anti corrosive material, PTFE is mainly used lined layer on steel chemical equipment.The tight lining PTFE that has been activated or bonded with a glass fiber cloth with coating by adhesive. At the same time, the steel shell of the equipment is sandblasted and cleaned, painted adhesion. Then the PTFE plate is bonded to the steel body through original vacuum lining technology, which can resist negative pressure up to - 0.095Mpa.
As one of special chemical condition, hot concentrated hydrogen fluoride (HF) solution and hydrochloric acid are highly corrosive, fluorine-containing polymer will be the high corrosive flowing material in tank. Now, one kind of experience reactor that glass-lined layer coate by PTFE option is used on this condition. PTFE make up for the defect of glass-lined resistant fluoride, inner glass lined layer as mainly anti corrosive layer, keeps longer using life because of PTFE. Product features:
·Clean, high temperature and corrosion resistance ·Smooth and glossy surface, low friction coefficient, not easy to peel off
·excellent penetration resistance

Main technical parameter
Items.	INNER VESSEL	JACKET
MATERIAL	Carbon Steel With PTEF Lining	Carbon Steel
DESIGN PRESSURE(Mpa)	0~0.6	0~0.6
DESIGN TEMPERATURE(ºC)	-190~120ºC	-190~120ºC
WORKING TEMPERATURE(ºC)	-190~110ºC
PTEF THICKNESS MM	3mm

1,Strictly supervise material choice 2,Extremely skillful welding process
3,Senior manufacturing experience 4,Perfect established service system
5,Strictly control product standard 6,Professional design qualification
1.Products can be customized to meet customers' needs in the aspects of structural design, function, capacity, and various working conditions ,et 2.A series of examinations will be taken before the final fabrication of the product are ready to put into batch production,inspection can be made any time before the final fabrication is ready.
3.We will provide instant service from the design drawings to after sales constantly upon the feedback from users.
4.The desgin department provide professional drawings for evaluating feasibility and practicability in the perspective of users.
Company Profile: Shandong Tanglian Chemical Equipment Co., Ltd. was established in 1998 and is located in Zibo, Shandong, the famous hometown of glass lining in China. It is a well-known chemical and pharmace-utical equipment manufacturer in northern China. As one of the backbone enterprises that pioneer-ed the production of glass-lined reactor equipment, its advanced production technology is well-known both at home and abroad.
PTFE Lined Storage Tank Plastic Lined Storage Tank Heat Exchanger Double Cone Vacuum Dryer Stainless SteelStorage Tank glass lined reactor Column Vertical Storage Tank
FAQ
Q1: Are you a factory or a trading company?
A1: Tanglian Heavy Industry Group Co., Ltd. is an integrated industry and trade enterprise with 7 subsidiaries under its
jurisdiction. It has the business capabilities of design, manufacturing, trade integration, and independent import and export.
Q2: Will there be any guarantee if I buy from you?
A2: We promise to provide a one-year warranty (from the date of delivery) for all products we currently sell.
Q3: Do you provide installation guidance or other after-sales service?
A3: Yes, of course. Installation drawings and installation manuals are provided. If you are still unable to assemble, we will
arrange for our engineers to help you with voice or video contact.
Q4: What are the payment methods and terms you accept?
A4: The payment methods we accept include: T/T, L/C, D/P; after signing the contract, the customer needs to pay 30% of the deposit first, and the remaining 70% of the payment is completed in the delivery money.
Q5: What is your delivery time?
A5: We can arrange FOB, CIF shipping methods. Usually, the delivery time for one device is 45 to 50 days, depending on the shipping method.
Q6: How do you pack and ship the equipment?
A6: We offer sea, rail or combined transportation. At the same time, we also provide LCL (LCL), Full Container (FCL), Flat Rack (FR), Bulk and Express to ensure that the goods are safe and free from damage.

---
