SAE 100 R5 Hydraulic Flexible Rubber Hose

Product Details

Product Description

Product Description

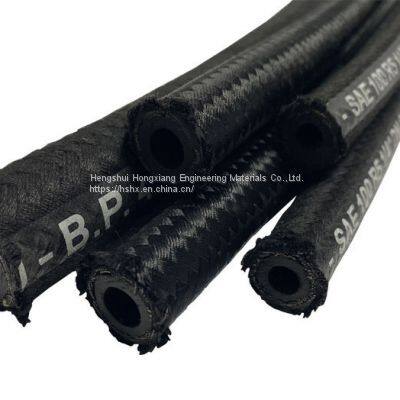

The SAE 100 R5 steel wire reinforced hydraulic hose has a braided fiber sheath for impact medium pressure hydraulic petroleum based oils, as well as superheated lube oil and water and air ducts.
Applicable Specification：SAE 100 R5
Working temperature: -40 °C to +100 °C; (-40 °F to +212 °F).

Inside Diameter(ID)			Reinforcement Diameter (RD)	Outside Diameter (OD)	Max Working Pressure		Min Burst Pressure		Bend Radius	Weight
DN	inch	mm	mm	mm	bar	psi	bar	psi	mm	Kg/mt
-12	3/4 "	19.1	28.7	32.0	420	6090	1680	24360	267	1.64
-16	1 "	25.4	35.8	39.0	420	6090	1680	24360	300	2.13
-20	1-1/4 "	31.8	47.8	50.8	420	6090	1680	24360	420	3.87
-24	1-1/2 "	38.1	54.8	58.0	420	6090	1680	24360	500	4.74
-32	2 "	50.8	67.8	72.0	420	6090	1680	24360	630	6.75

---
