US$25,000.00-32,000.00
|
1 set
(MOQ)
|
Basic Info.
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
Net weight of machine
9000kg
Transport Package
Wooden Cases
Trademark
Dalian ZT Machinery
Production Capacity
200 Sets/Year

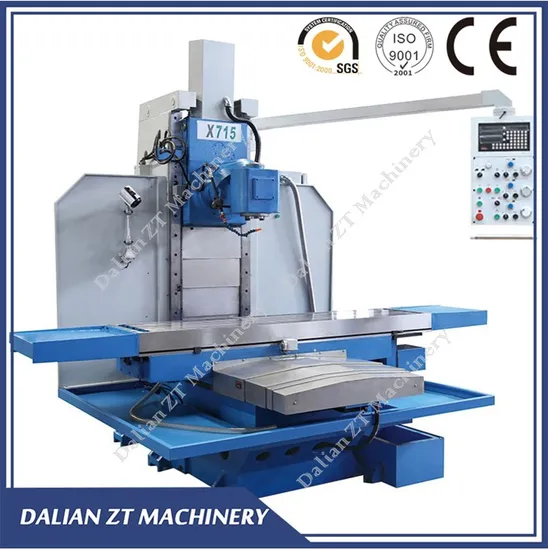

Product Description
Main Feature
all guides are hardened, ground and supplied with oil by a central lubrication unit. Universal swivel head swings easily to a horizontal position. Servo-motor on all axes, infinitely variable feed, rapid feed, and speed control. Electronic hand-wheels on all axes. Ball screw drive on all axes Powerful main motor. Technical specifications:
| Specifications | Unit | X716 |
| Spindle hole taper | mm | 7:24 ISO50 |
| Spindle speed range | r/min | Variable 6-300,30-1500 |
| Distance between spindle axis and column guideway | mm | 8-660 |
| Distance between spindle nose and table surface(V) | mm | 0-700 |
| Distance between spindle axis and table surface(H) | mm | 8-660 |
| Table size | mm | 2500*600 |
| T slots | mm | 5/20/100 |
| Table travel-X | mm | 1800(2000) |
| Table travel-Y | mm | 700 |
| Table feed-X/Y | mm/min | 2.5-3000 |
| Table feed-Z | mm/min | 2.5-2500 |
| Table rapid feed X/Y/Z | mm/min | 6000/6000/3000 |
| Main motor power | kW | 11 |
| Torque of X/Y/Z axis AC servo motor | Nm | 18/23/18 |
| Cooling pump motor power | w | 90 |
| Overall size | mm | 4380*2520*2800 |
| Weight | kg | 9000 |
Standard accessories:
| NO. | Name | Specificcations | Q'ty. |
| 1 | Milling machine | X716 | 1 |
| 2 | Draw bar | | 1 |
| 3 | IS050 taper shell end mill holder | ISO50-Φ40 | 1 |
| 4 | 7: 24 middle cover | 7: 24 IS050/MS4 | 1 |
| 6 | Oil gun | | 1 |
| 6 | Foundation bolt | M16×450 | 6 |
| 7 | Allen wrench | 5,8,10 | 1 |
| 8 | Double-ended wrench | 27×30 | 1 |
| 9 | Double-ended wrench | 36×41 | 1 |
