Gamma Tech Large Capacity Poultry Feed Pellet Mill for Animal Livestock Cattle/ Best Feed Machine in China

Product Description

5TPH Animal Feed Production Line

Raw materials	corn,wheat bran,fish meal,bone powder,meat,alfafa,grassetc.
Diameter of feed pellet	2-10mm
Application	feed pellet machine/plant widely be used for home,poultry and livestock farm.
Capacity	5T/H,also can customized according to your demand
Process Step	crushing-mixing-pelletizing--cooler&screener--packing
Warranty	1Year(except spare parts) from delivery date
Certication	CE
Motor	Siemens Brand Motor for main machines
Bearing	SKF/NSK Brand for pellet mill
Service after sales	Engineer can provide technical support

Technical Parameters Of Main Pellet Mill(SZLH320)

Model	SZLH320	SZLH350	SZLH400	SZLH420	SZLH508
Capacity	2-5T/H	1.5-8T/H	2-10T/H	3-12T/H	4-20T/H
Main Motor Power	37KW	55KW	75/90KW	110KW	132/160KW
Screw Feeder Power	0.55KW	0.75KW	0.75KW	1.5KW	1.5KW
Conditioner Power	2.2KW	2.2KW	2.2KW	5.5KW	7.5KW
Ring die inner diameter	320mm	350mm	400mm	420mm	508mm
Ring die rotational speed	305PRM	336PRM	307PRM	287PRM	287PRM
Roller outer diameter	140mm	165mm	190mm	206mm	/
Dimension	2300*1000*2100	3200*1100*1700	3200*1300*1900	3500*1300*2800	3500*1500*2900

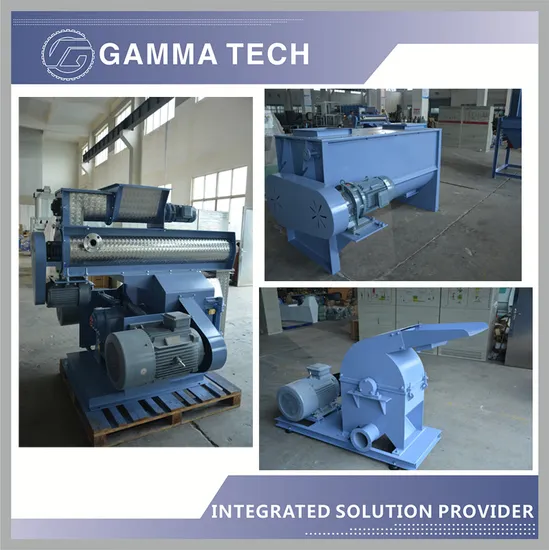

Commercial Poultry Chicken Feed/Food Pellet Mill Photos:
FACTORY FACILITY - GOOD TOOLS MAKING GOOD MACHINES
About Service
We insist on "Quality is the soul of company" and take customers as our god, owned outstanding R&D team with the sense of innovation and cooperation, timely and effectively after-sales service team, professional installation guidance team. We devote to all-round service of all the products from shipment to maintenance.
√ Our professional service includes: Free training, Guidance Installation and Debugging.
√ Guaranteed Time: 12 moths from delivery date .
If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
Thank you for your reliance and support!
Packing & Delivery
Why choose from us?
A.Good reputation
Because of the good quality and credit,our company are with good reputation both at home and abroad.
B.Factory direct supply
This ensure the competitive price available and brand care.
C.Advanced technology adopted
American CPM advanced technology with rich experience on site for installation and debugging,which has the good ability to provide with aftersale service.
D.Best and reasonable structure design of the pellet mill
This make sure the durability of the machinery running.
Gear drive of the pellet mill which make the pellet machine stronger for making the wood pellets.Compared with belt drive,with lower consumption for the same capacity.

---
