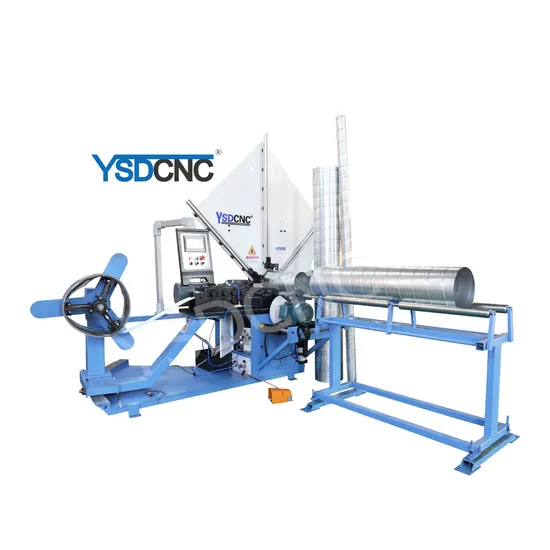

Round Duct Former Machine, Used Spiral Pipe Machine, Spiral Welded Pipe Machine

Product Description

Product Description
The prestigious YSDCNC has been widely recognized in the HVAC and sheet metal industry as the spiral duct machine with outstanding quality, reliability, and performance-driven approach. YSDCNC launched a new modular Tubeformer concept for HVAC application. The new design aims at custom-tailored configurations suitable for individual production demands and greater functionality flexibility for future expansions. Assemble the machine according to your needs when it comes to output (speed configurations), strength (material thickness configurations), and range (dimension configurations)! The new touch screen based Control System manifests an operation- and production friendly design coupled with many features, including the newly developed optional PC Download function for enhanced production efficiency.
Performance Features:
1, patented mold, easy to adjust, and has its own patent, replace the mold more trouble and save the province of materials
2, high-speed synchronous cutting system
3, PLC control
4, can be on-site construction
5, can be adjusted
6, high-quality products, high-quality services
7, the system can handle galvanized sheet, aluminum
8, automatic roll out of equipment
9, can produce a variety of different diameter spiral tube
Specification

Main Technical Parameters:

Model	YSDCNC-1500
Tube Diameter	80-1500mm
Tube Wall Thinkness	0.4-1.2 mm(SS 0.4-0.8 mm)
Cutting Method	Roller Cutter (Plasma cutter optional)
Width of strip	137 mm
Working speed	1-45 m/min
Motor power	4kw
Dimension	2700*1700*2300mm
Weight	2200kg

Processing material: Galvanized Steel Sheet / Stainless Steel / Aluminum Plate

YSDCNC-1500 is flexible type with roller cutter



Mainly Parts :

Motor	WNM Brand(CHINA) / Siemens Brand(optional)
Air Cylinder	SNS-CHINA
PLC	YSDCNC-CHINA
Frequency Transformer	China brand
Electric Brand	Chint Electric
Rolls Material	GCr15
Rollers Stations	5 stations

Our Service


1:The machine provides 36-month warranty and free online support and service from engineers. 2: Provide online technical support
and service for life, even after the warranty period, the engineer team can always provide you with online service at no additional cost. (All our clients have this service, we think it is very necessary)
3: During the warranty period, we can send you spare parts for free replacement.
4: After the machine is completed, free whatsapp online inspection service will be provided.Bend the product according to your requirements, then test it.
5: Pack and record the video, and submit it to you for acceptance service, or you can directly watch online on whatsapp.
6: We can also provide the following information, and it is very necessary.photo of the rating plate you apply on the machine itself-basic manual for the machine in English.

Hello, our standard model has a large number of stock, regular shipping time 0~7 days. The custom model can be completed in 7-25 days (according to the size of the machine, different time.
We are a 7-year member of ******, and we support third-party guarantee transactions of ****** credit insurance
transactions, which can better protect your financial security.
The company provides a variety of transaction methods: EXW, FOB, CIF, DDU, DDP and other education methods
support customs declaration, export, transportation and delivery to the door and other one-stop services.




You can trade through TT, wire transfer,
transfer, paypel, letter of credit, ******
credit order and other transaction methods.


We can deliver to your forwarding warehouse, or directly to your door, and deliver the goods to your hands.We cooperate
with well-known international shipping companies such as COSCO Shipping, and we can also be responsible for the
customs clearance of your goods, delivery of goods to your door, etc.And we provide free shipping insurance. If there is
any damage during transportation, our insurance company will settle the claim for you, and we will send you free shipping.
(If you have any questions, please contact us as soon as possible, and we will guide you how to operate? We are your
most trusted partner, we are your eyes and hands.)
Our Company



Nanjing Shanduan CNC Machine Tool Co., Ltd. has 38
years of industry experience. We specialize in four main
product lines: air duct production lines, CNC bending machines, shearing machines, laser cutting machines, and shredders
for energy recovery. With over 300 employees, including 30
sales engineers and 35 service engineers, our factory spans
40 acres and is equipped with 3 floor-type boring and milling
machines, 6 gantry planers, 10 radial drilling machines, and
25 CNC machining centers. In total, we have over 200 large
and small-scale equipment.



With over 100,000 customer case experiences and product transportation to over 100 countries, we have a proven track
record in serving a wide range of clients. We are dedicated to assisting you in securing orders and providing high-quality
products and services. Our commitment to excellence has
resulted in many satisfied customers who are eager to
become our agents.

FAQ
Is it in stock?
Hello, we have a large amount of stock for standard models, and the regular delivery time is 0~7 days. Customized
models can be completed in 7-30 days (depending on the size and voltage of the machine, the time is different.)
How to buy?
Our company supports a variety of transaction methods, and you can deliver the goods to your door with a deposit
in advance.Various transaction methods such as payment to delivery or delivery to the factory. Consult for details: +8618851629789
How about the after-sales service?
15 minutes quick feedback mechanism. 1-to-1 technical guidance. One year warranty and lifetime service. Free
replacement of non-wearing parts during the warranty period, and lifelong online technical support provided outside
the warranty period. The factory provides spare parts, and the factory installation video provides after-sales service.
How about your quality?
Our company's products are produced according to national standards, and have passed TUV, SGS, BV, CE and other
certifications. Quality assurance, EU approval, the products sell well in more than 100 countries.
What other services do you have?
Free counter, free customs declaration, free installation training for export, free online technical guidance.

---
