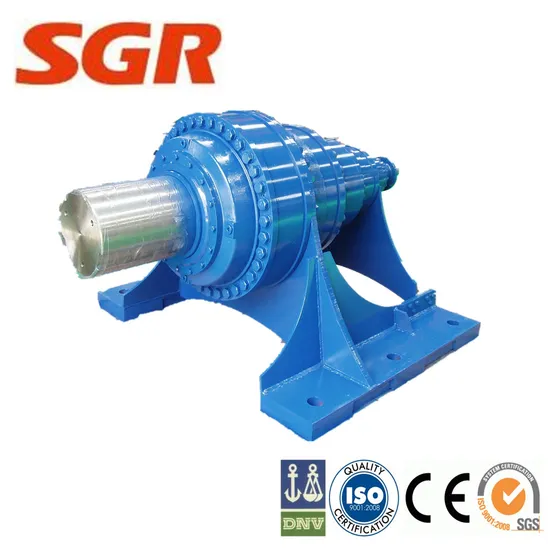

Foot Mounted High Torque Inline Planetary Gearbox for Machining Equipment Equivalent to Bonfiglioli, Brevini, Reggiana Riduttor

Product Description

Foot Mounted High Torque Inline Planetary Gearbox for Machining Equipment Equivalent to Bonfiglioli, Brevini, Reggiana Riduttor
N series of planetary reducers from SGR are widely used for industrial and heavy duty severe applications . planetary reducer feature with compact size, low noise , excellent reliability ,long life . In-line or right-angle are available in male and female shaft configurations. The SGR male shaft solution (splined or cylindrical) is able to withstand strong radial or axial loads on the output shaft. As a leading planetary gearbox manufactory in China , planetary reducer was produced by modular design, combined according to customer requirement. In relation to key components , SGR used qualified spare parts like for housing material with nodular cast iron which can increases gearbox's rigidity and antiknock, heavy-duty bearing is installed at low-speed shaft, it can bear big radial load due to proportionate distribution of torque ,every gears are case hardened to get high reliability and long life . SGR planetary reducer have 16 models for different torque range ,each model have 1-5 stages to achieve different ratios , besides ,planetary reducer from SGR have wide rang selection of high speed design: cylindrical with key, hydraulic motor, electric motor .Installation is multiposition ,various fasten type .
Characteristic of Foot Mounted High Torque Planetary Gearbox :
1. The wide and comprehensive range of N series for industrial applications
2. Low-speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft
3. Rigid and precise nodular cast iron casing
4. Low noise running, high manufacturing quality standard
5. High and reliable performance, load capacity and low-speed shaft bearing

Ratio	3.15:1 to 9000:1
Reduction Stages	up to 6 reduction stages in one gearbox
Nominal Output Torque	up to 800,000N.m

Data Sheet :

Torque range	1000 ... 540000 Nm	Input	IEC Flange
Mechanical rating (n1 = 1500 min-1)	up to 200kW		Electric motor
Gear ratios	12.67 ... 50.9		Solid input shaft with or without fan cooling - inch or metric dims.
Gear unit versions	In line	Applicable AC motors	Integral motors and brake motors
			IEC-normalized motors and brake motors
Mounting type	Foot		Single and dual speed motors
	Flange mounted	Main brake features	DC and AC supply
	Torque-arm		Faster brake reaction through electronically controlled rectifier
Output shaft options	Solid shaft	Main motor options	Thermistors and thermostat sensors
	Splined shaft		Independent forced cooling
	Female splined shaft		Line driver and push-pull incremental encoder
	Hollow shaft with shrink disc

Shipping :
According to Customer requirement, we delivery products by different transport, Sea shipping, Air Transportation / Express or Truck transportation etc.
You Appoint, We Service!
Our Services With all our activities DNV-ISO 9001, SGS -certified, we stand for top-quality service. Entrusting your gearboxes to the care of our Services.
Help protect your gearbox from wear and grinding, SGR gearbox converts torque reliably and effi­ciently.
We customize our SGR planetary gear units, double enveloping worm gearbox, helical gear motor, modular design helical gear unit, worm gearbox, cycloidal gearbox etc to fit your application and meet your needs.
These features enable a reliable and safe service life of over 200 000 operational hours.
Our customers have been placing their trust in SGR gear units since 1997. More than 500 000 gear units of our gearbox are in use reliably around the world, in many cases under very harsh conditions.

Our Honour and Patent :
ABOUT US:
Shanghai SGR Heavy Industry Machinery Co., Ltd.(formerly known as Shanghai Great Wall Reducer Co., Ltd. ) (sgrgear.en.made-in-china.com) has accumulated rich original designing & manufacturing experience after being founded in 1996. SGR brand planetary gear reducer has won honor of "Science and Technology Advancement Prize" awarded by the National Speed Reducer & Variator Industry Association.

---
