Ce 2t/H Rabbit Food Pellet Mill Chicken Feed Pellet Making Machine

Product Description

CE 2t/h Rabbit Food Pellet Mill Chicken Feed Pellet Making Machine
Product Description

Item	Feed Pellet Production Line
Suitable Raw Material	corn, maize, grass, grains, molasses, wheat, beans etc.
Feed application	poultry, livestock and aqua animals like: cattle, pig, sheep, shrimp, fish, pet etc.
Technical Parameters	- Capacity: 0.5t/h-2t/h - Dimensions: Designed according to specific requirements.
Features	- Highly efficient one step gear transmission drive ensures maximum utilization ratio of energy. - Full stainless steel feeder; Variable-pitch anti-arch structure; Imported frequency converter control. - Stainless steel conditioner extends the conditioning and cooking time. Axial steam spraying port, improving feed cooking efficiency. - High precision driving main gear and pinion shaft adopt the carbonizing quenching and hard tooth surface grinding technology, resulting in smooth driving, low noise and long service life.

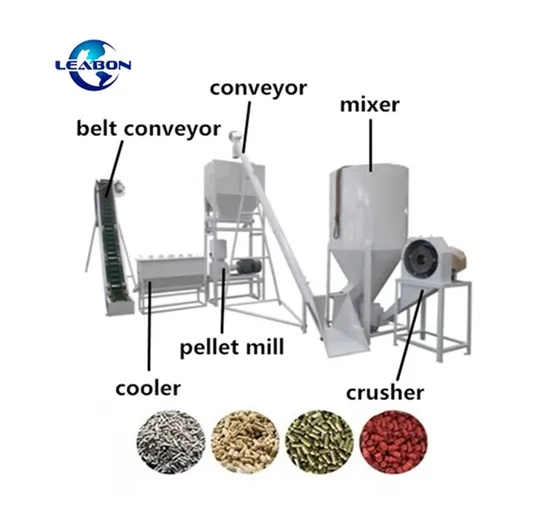

Production process Crushing---Mixing---Pelleting---Cooling--Packing
Crushing:
The task of this section is to crush the clean materials we got in the last section into powder(less than 3mm),and
then deliver the powder to the next section.
Mixing
The task of this section is:
A. evenly mix different materials into complete powder feed. B. According to the certain operation order between the bin for the mixer, the mixer and the buffer bin,to ensure
the continuous operation.

Model	LBM-500	LBM-750	LBM-1000	LBM-2000
Power(kw)	3	3	3	5.5
Capacity(kg/h)	500	750	1000	2000
Mixing Tim(min/batch)	30	30	30	30
Dimension(mm)	1050*1050*2500	1250*1200*1600	1500*1350*2800	1700*1650*3500
Weight(kg)	150	180	210	260

Pellet making
The task of this section is to pellet the powder feed to required sizes.

Model	Power(kw)	Capacity(kg/h)	Weight(kg)	Package size(mm)
PM-120B	3	75-100	80/100	750*320*610
PM-150B	4	100-200	95/115	750*350*650
PM-200B	7.5	200-300	240/270	100*430*950
PM-230B	11	300-400	290/320	1140*470*970
PM-260B	15	400-600	330/380	1200*520*1070
PM-300B	22	600-800	410/450	1270*520*1070
PM-360B	22	800-900	470/500	127*52*107
PM-400B	30	900-1100	630/660	147*60*115

Cooling machine

Model	SKLN0.6	SKLN1.0	SKLN1.5	SKLN4	SKLN8	SKLN12
Volume(m³)	0.6	1	1.5	4	8	12
Capacity(t/h)	1	2	3	10	20	30
Cooling time(min)	6-10mins
Temperature after cooling(ºC)	Not higher than +3~5ºC
Air volume(m³/min)	34
Power(kw)	/	0.75	0.75	1.5	1.5	1.5
Airlock(kw)	/	0.37	0.37	0.55	0.55	0.55

Packing machine
It is suitable for the quantitative packaging of granules in food, grain, fodder, sugar making and chemical industry,etc.

Model	DB-1A	DB-5A	DB-25A	DB-50A	DB-100A
Packing Range	0.2-1kg	1-5kg	2.5-25kg	5-50kg	10-100kg
Packing Error	0.2%F.S	0.2%F.S	0.1 %F.S	0.1 %F.S	0.1 %F.S
Division Value	2g	5g	10g	20g	20g
Packing Speed	300-500 bags/h		300-420 bags/h	≥300 bags/h
Power	AC 220V 50Hz
Air Supply	0.4-0.8 MPa
Machine Dimension	1725x620x710 (mm)	1890x620x710 (mm)	2450x650x715 (mm)	2560x650x715 (mm)	2960x730x775 (mm)
Actuator	pneumatics
Accuracy Class	X(0.2) X(0.1)

Raw Material
Final Pellet
Company Introduction
Zhengzhou Leabon Feed Machinery Co., Ltd. is a professional and advanced supplier which mainly supply feed equipments like feed crusher,mixer,pellet machine,granule crumbler,feed pellet cooler, packing and entire feed pellet production line.With rich experience for many years.
Feedback
Click Send to get Customized solutions of feed pellet making line

---
