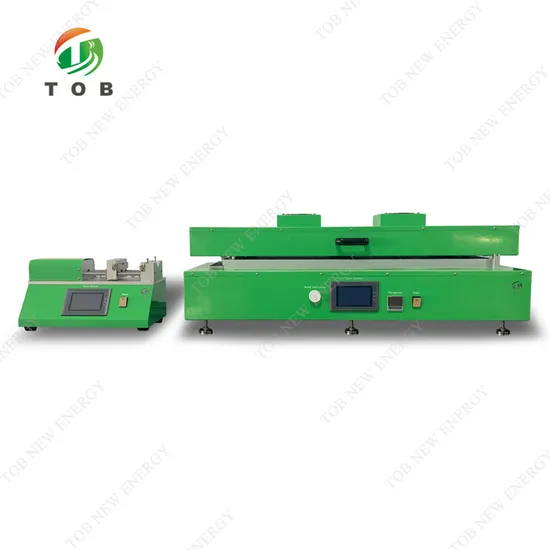

800mm Length Custom Lab Desktop Coating Machine for Battery Electrode Coating

Product Description

800mm Length Custom Lab Desktop Coating Machine for Battery Electrode Coating

Adopt slot die coating method (the coating process such as scraper coating, four-side coating device and wire rod coating can be selected). Mainly used for sheet type material surface coating of lithium battery substrate coating, solar photovoltaic film and polymer conductive film, OLED and other fields.
* Strong wind circulation drying heating, digital display temperature control, maximum working temperature 150ºC;
* Digital display timer, freely set drying time;
* Coating speed can be adjusted within the range of 0 ~ 120mm / s;
* Vacuum aluminum pan for quick placement or removal of substrates;
* The stroke can be adjusted by the stroke switch between 0 ~ 800mm;
* Squeegee with adjustable coating thickness (0.01mm accuracy);
* Small size could saves space;
* Exquisite appearance, sheet metal adopts three-dimensional geometric design, simple and beautiful;

Model	TOB-JYCM-800
Voltage	AC110V-220V, 50/60Hz, Single Phase
Coating method	Slot die flat plate film coating, standard equipped with TOB-JY100 Slot die film applicator
Coating drive	Motor drive, coating speed with step-less set and adjusted in the touch screen
Coating speed	0~200mm/s
Max Stroke	The stroke can be adjusted by the stroke switch between 0~800mm
Vacuum plate	With vacuum aluminum plate
Vacuum plate size	L900mm×W200mm×H32mm
Adjustable range of scraper	0.01~3.5mm
Heating and drying system	Room temperature~200ºC, digital display temperature controller, accuracy±1ºC
power supply	220V/50Hz
Weight	70KG
Dimensions	L1000mm×W350mm×H320mm
Standard accessories	Applicator , Crossbar, Collection box

---
