Product Description
Product Description

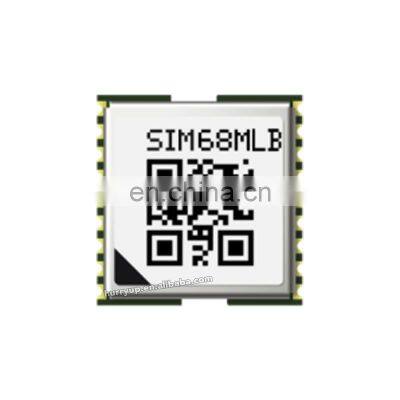

DescriptionSIM68MLBSIM68MLB is a high performance and reliable GNSS module. It is a GNSS module integrated with GPS & BeiDou system in a LCC type with Airoha’s high sensitivity navigation engine, which allows customer to achieve industry’s high level sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lower power consumption.SIM68MLB provides simultaneous GPS, BeiDou, and QZSS open service L1 reception capability. With 33 tracking channels and 99 acquisition channels, SIM68MLB can acquire and track any mix of multiple satellite signals. Combining advanced AGPS called EASY™ (Embedded Assist System) with proven AlwaysLocate™ technology, SIM68M achieves the highest performance and fully meets the industrial standard.Product Advantages• Support EASY™ self-generated orbit prediction• Support EPO™ orbit prediction• Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)• Support Jamming Removing• Low-noise amplifier has been integratedMechanical dataFeatures•Dimensions : 10.1*9.7*2.5mm•Weight : 0.5g• Support GPS/BeiDou/QZSS(L1 Band Receiver 1575.42MHz)• Support EASY™ self-generated orbit prediction• Support EPO™ orbit prediction• Support SBAS ranging(WAAS, EGNOS, GAGAN, MSAS)• Support Jamming Removing• Low-noise amplifier has been integratedPerformance dataInterfaces• Receiver type : 33tracking/99 acquisition-channel GNSS receiver• Max. update rate : 10Hz• Sensitivity¹Tracking : -165 dBmReacquisition : -160 dBmCold starts : -148 dBm• Time-To-First Fix²Cold starts : 28 sWarm start : 26 sHot starts : <1sEPO Assist : 13s（CTTFF)• AccuracyAutomatic Position³ : <2.5m CEPSpeed⁴ : 0.1m/s• Operation temperature5 : -40℃~+85 ℃• Serial interfaces : UART• Digital I/OPulse-per-second (PPS)EINT0 input• ProtocolsNEMAPMTKElectrical dataCertifications• Power supply : 2.8V~4.3V• Backup power : 2.3V~4.6V• Power consumption2,6 :Acquisition : 25mATracking : 20mAAlwaysLocate™ : 340uABackup : 14uA• Antenna type : Active and passive• Antenna power : External or internal VCC_RF• TBDWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC
>>
