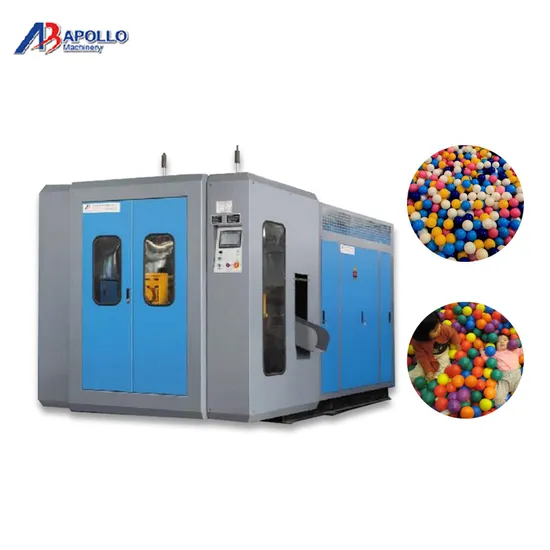

HDPE Bottle Blow Molding Making Machine

Product Description

Plastic blow moulding machine:
ABLB65 series full automatic blow molding machine with a auto-deflashing unit. It helps you save labor cost at 200%. A wide variety of materials can be used for this machine, which specialize in making various oil barrels and related bottles not over 2L. The clamping system is a high-precision single-station linear guide, extrusion system use a hard gear and inverter imported from Japan.
The die head system adopt central-incoming extrusion die made of special steel to ensure the quality of the products. Imported hydraulic valve and seal valve with proportional control valve. Control system consists of PLC and human machine interface imported from Japan.
The main technical parameter of this machine:

Max. Product volume	2 liters
Dry cycle	1000pc/h
Screw diameter	65mm
Screw L/D ratio	24 L/D
Screw drive power	18.5 KW
Screw heating capacity	5-6 KW
No.of heating zone	3 zones
Output of HDPE	80 KG/H
Oil pump drive power	7.5 KW
Clamping force	65 KN
Max.size of mold	148-568mm
Mold stroke	330X370mm
Max.die diameter	160mm
Blowing pressure	0.6mpa
Air volume	0.6 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	50 L/MIN

The component of the machine:

Electronic Parts
Name	Trader
Micro Computer Control System	Japanese MITSUBISHI
Temperature Controller	Japanese MITSUBISHI
Intermediate Relay	OMRON
Contactor	Schneider from France
Electric Motor	Simens Bede
Servosystem	Delta / MEGMEET
Power supply	TAIWAN MEANWELL
Transducer	ABB
Hydraulic Parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	JAPAN YUKEN
Oil pump and connection	JAPAN YUKEN
Sealed part	HALLITE
Air Control System
Name	Trader
Cylinder	AIRTAC
Air Valve	AIRTAC

---
