550HP Electric Boat Motor Weichai Marine Diesel Engines Price

Product Description

Product Description

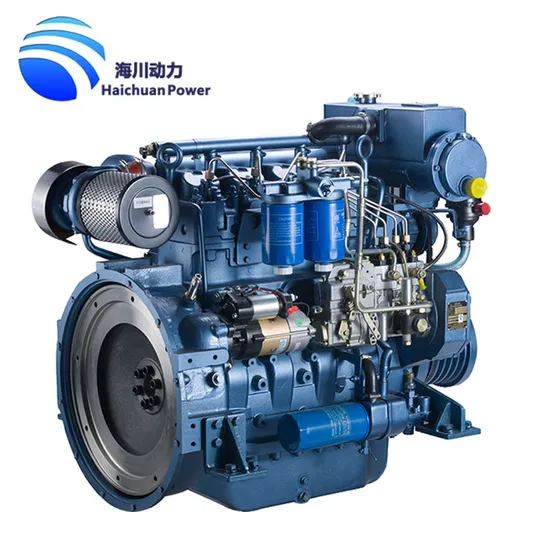

Boasting high economic performance and environmental friendliness, Weichai WD10/12, WP12 series marine diesel engines are based on brand new design concepts and have inherited the compact structure of engines mounted on vehicles. This series are ideally used on river transport ships, fishing boats and public vessels.
Power range:130-405kW
Basic Specification for Marine Engine

brand	Weichai Power	model	WP12C550-21
rated power	405 kW (550hp)	rated speed	2100 rpm
intake mode	turbocharged and intercooled	idling	600±30 r/min
number of cylinders	6	bore X stroke	126×155 mm
displacement	11.596 L	rotation direction of crankshaft	clockwise
fuel oil consumption	192 g/kW·h	start mode	electric start
lub oil consumption	0.5g/kW·h	smoke intensity	≤ 1.0 Rb
emission standard	IMO TIER II	overhaul period	12000 h

Introduction of Weichai WP12 Series Marine Diesel Engine: Boasting high economic performance and environmental friendliness, WP12 series marine diesel engine is based on brand new design concepts and has inherited the compact structure of engines mounted on vehicles. This series are ideally used on river transport ships, fishing boats and public vessels.
ADVANCE D300A - 4:1 MEDIUM/HEAVY DUTY GEARBOX

Reference number	A-D300A-4
Brand	Advance
Model	D300A
Ratio	4:1
Power	630 HP @ 1800 RPM
Max. Power	805 HP @ 2300 RPM
RPM Range	1000-2300
Rated propeller thrust	60 kn
N/n	0,35 hp/rpm

FEATURES & OPTIONS

Sae housing	Without/sae-0/sae-1
Controls	Mechanical/ electrical
Pto	Available
Note	If using flexible couping, rate will rise 8%
Coupling size	18 /16 /14 inch
Coupling type	Rubber block drive, with alu. ring/(high) flexible coupling

DIMENSIONS

Vertical offset	355 mm
LxWxH	786x920x1040 mm
Net. weight	940 kg

AVAILABLE ARRANGEMENTS

Ratio	4,48:1	4:1	5,05:1	5,52:1	5,9:1	6,56:1	7,06:1	7,63:1
Rate	0,33 hp/rpm	0,35 hp/rpm	0,30 hp/rpm	0,25 hp/rpm		0,20 hp/rpm		0,17 hp/rpm

Marine Propeller Our Service
1) Pre-Sales Service * Inquiry and consulting support.
* Sample testing support.
* View our Factory.
2) After-Sales Service * Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
