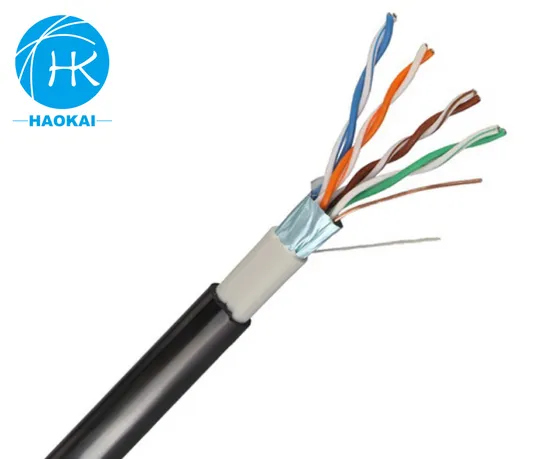

FTP CAT6A Indoor LAN Cable 23AWG Shielded Copper Network Cable

Product Description

FTP CAT6A Indoor LAN Cable 23awg Shielded Copper Network Cable Product Description Customized High Quality UTP/FTP/SFTP CAT5 CAT5e CAT6 CAT6A Network Cable Solid Bare Copper Cable Ethernet Cable LAN Cable ETL/UL/CMX/CM/CMR/CMP.
1, E Series(Economic), Meet most cabling requirements, choose CCA conductor, working distance 100-120M for Networking Cabling. support 10-100Mbps, Good performance on CCTV Camera2, B Series(Basic performance), Meet gigabit cabling standards,Choose Pure Copper Conductor, working distance more than 200M for Networking Cabling, support 10-100-1000Mbps, Better performance on CCTV Camera3, HE Series( High quality Economic), Choose High quality CCA, and better HD-PE material import from America 3364, Korea 8380, Compared with B and E series, HE series has improved the material and production process, added two processes of untwisting and total Twisting, which Improved signal attenuation and Crosstalk, and improved performance4, HP Series(Highest performance), Compare with HE series,Highest performance cable all choose Pure Copper, and Imported insulation , Jacket materials. This is for customers who have very high requirements for cabling, Fully satisfied Gigabit and 10-Gigabit cabling requirements.
Product application Used for various of networking comunication.
Product Parameters

Inner conductor	Material	Soild Bare Copper/CCA
	Diameter	0.57± 0.01mm (23AWG)
Insulation(Dielectric)	Material	Color-coded PE (Polyethylene)
	Thickness	≥ 0.18mm
	Diameter	1.0± 0.01mm
Twisted pair	4Pairs	Pair 1 : Blue, White / Blue Pair 2 : Orange, White / Orange Pair 3 : Green, White / Green Pair 4 : Brown, White / Brown
Rip Cord	N/A	Yes
Seperator	N/A	YES
Outer Jacket	Material	PVC(PE/LSZH)
	Thickness	≥ 0.60mm
	Nominal O.D	6.3mm ± 0.30mm
Options: Jelly Compound, Jacket: UV, FR, Rohs complied.

Frenquency	Attenuation	RL	Next	PS Next
(Mhz)	(dB/100M)	(dB)	(dB)	(dB/100m)
1	2.1	20.0	74.3	72.3
4	3.8	23.0	65.3	63.3
8	5.3	24.5	60.8	48.8
10	5.9	25.0	59.3	57.3
16	7.5	25.0	56.2	54.2
20	8.4	25.0	54.8	52.8
25	9.4	24.3	53.3	51.3
31.25	10.5	23.6	51.9	49.9
62.5	15.1	21.5	47.4	45.4
100	19.1	20.1	44.3	42.3
200	27.6	18.0	39.8	37.8
250	31.1	17.3	38.3	36.3
