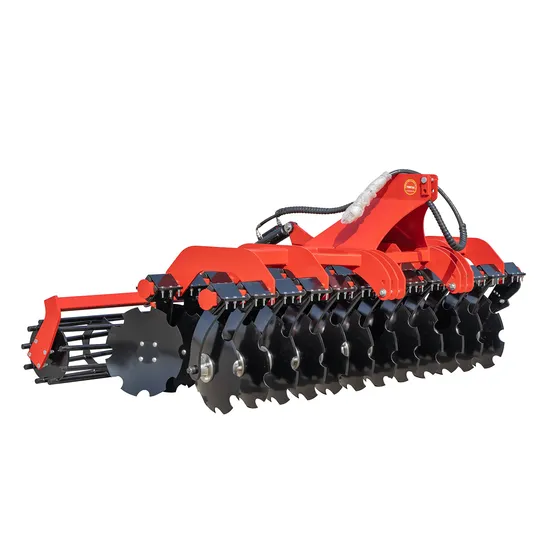

Heavy Duty Speed Tiller Machine Farm Harrow

Product Description

SHANDONG YUNTAI MACHINERY CO.,LTD., founded in March 2005, registered
capital 100 million CNY, covering an area of 135,000 square meters, is a leading
exporter of agricultural machinery and accessories.
YUNTAI company produce 20,000 sets tractor implements and 1,500,000 pcs of
accessories annually and have its owe R & D team and strong production capacity.
YUNTAI company produce agricultural machinery and accessories matched with
18 to 500 horsepower tractor. Including the tillage, fertilizering,Seeding, harvesting,
transporting and plant protection machinery. Main equipments are disk plow, disc
harrow, subsoiler, rotavator, rear blade, spreader, mower, trailer, grain cart, potato
harvester, thresher etc. Main accessories are farm disc blade, plowshare, plow shovel,
harrow tine, bearing assembly, harrow axle, trailer axles ,forging parts, casting parts
and so on.
YUNTAI company have advanced production lines of machining, welding,
punching, forging, sand blasting and powder coating. We also have two automated heat
treatment lines and the heat treatment production technology is at the top level in the
industry. Our products are exported to more than 70 countries and regions, such as the
United States, Germany, France, Australia,Asia, Africa,etc.
YUNTAI company is in Qihe Economic Development Zone, Dezhou city,
Shandong Province. It is near to Jinan airport and Jinan railway station , From Jinan air
port and Jinan west train station only takes 30 minutes by car.

Technical specifications	Unit of measurement	Model
		1LZX-3.0G	1LZX-3.5G	1LZX-4.0G	1LZX-3.0H	1LZX-3.5H	1LZX-4.0H
Working width	mm	3000	3500	4000	3000	3500	4000
Length of the roller	mm	2900	3400	3900	2900	3400	3900
Diameter roller	mm	450	450	450	450	450	450
Type roller		TAVALUG PACKER			TAVALUG COARDA
Number batteries discs	pcs	2	2	2	2	2	2
Number of discs	pcs	24	28	32	24	28	32
Distance between discs	mm	240	240	240	240	240	240
Diameter discs	mm	560			560
Working depth	mm	180	180	180	180	180	180
Working speed	km/h	7--12	7--12	7--12	7--12	7--12	7--12
Transport clearance	mm	Min 300	Min 300	Min 300	Min 300	Min 300	Min 300
Transport speed	km/h	15	15	15	15	15	15
Productivity	ha/h	2.1-3.3	2.5-3.9	2.8-4.4	2.1-3.3	2.5-3.9	2.8-4.4
Required tractor power	hp	100-130	110-130	120-150	100-130	110-130	120-150
Length	mm	1500	1700	1700	1500	1700	1700
Width	mm	3000	3500	4000	3000	3500	4000
Height	mm	1500	1500	1500	1500	1500	1500
Weight	kg	1620	1950	2150	1400	1750	1950
