Product Model: KY928-300M
Ideal for Hotel, Café, Restaurants, small business office and other public places wi-fi solution.

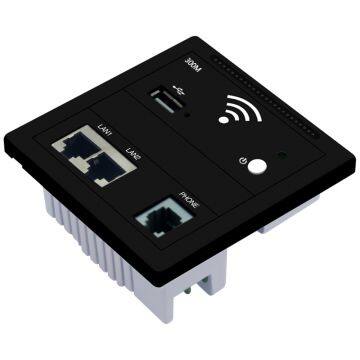

AP Indoor Wall Embedded Wireless WiFi 86 Panel Home Router and 5V USB LAN.
Professional design for the hotel and home decoration products WiFi access point, to provide users with convenient WLAN service using standard 86 boxes, with the existing building structure, without consuming more time and cost, you can easily set up a wireless network complete.
Software wizard for simple setup.Support Wireless Repeater Mode and Standard AP Mode.
Provides two 10/100Mbps Auto-Negotiation Ethernet LAN ports.
Power supply: Support AC100-240V OR PASSIVE POE 24V (Poe version need match 24V POE Switch/Adapter to use)
1*10 / 100Base-Tx POE WAN port (port with internal wiring, dark line access)
2*10 / 100Base-Tx LAN port
1* USB interface
1* Reset button
1*AC port
1*RJ11 phone in
Default web address: 192.168.11.1
The default login name: admin
Password: admin
Power<5W
Antenna: Omni-directional Built-in 3dBi antenna
WiFi Technology Standards:
IEEE 802.11a/b/g/n 2.4GHz
Passive Power Over Ethernet
The highest rate of IEEE802.11n 150Mbps Wireless
Maximum output power: 20dBm
Frequency range: 2.4-2.484GHz
Channel bandwidth: 20 / 40MHz
Modulation mode: OFDM DSSS BPSK QPSK CCK
Wireless Security: WEP, WPA-PSK, WPA-TKIP, WPA2 AES
Computer Setup: Start, Control Panel, Network and Internet, Network and Sharing Center, Change adapter
settings, Wireless network connection, Attribute, Internet protocols, Obtain IP address automatically, Sure.
Support bridging mode, needing data unification
Support System: Windows XP/Vista/Win7/Win8
Wireless transmit power: 14 ~17 dBm (Typical)
Operating temperature: 0 °C ~40 °C
Storage temperature: -40 °C~70 °C
Relative humidity: 10% ~ 90% (Non-Condensation)
System requirements:
WLAN access point/client according to IEEE 802.11n, g, b.
The WLAN client must support at least the WPA encryption standard.
WLAN access point and the WLAN client with automatic IP address assignment(DHCP).
Forwarding of IPv4-based protocols/Address Resolution Protocol.
The network name (SSID) of the WLAN access point must be set to "visible".
Package:
1 x Wall wireless AP
1 x English user manual
>>
