| US$4,000.00 | 1 Piece (MOQ) |

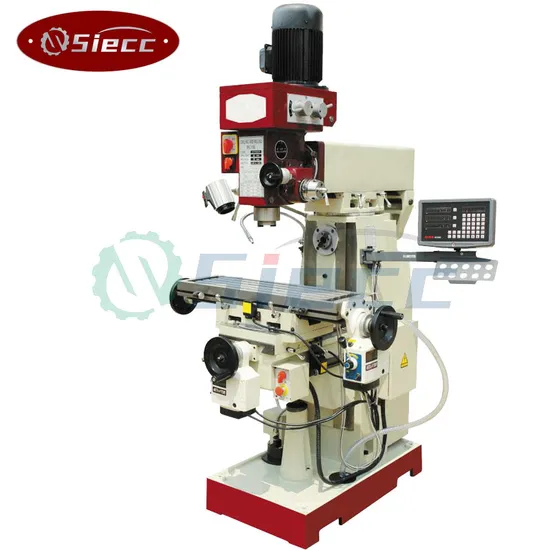

| Item | X6336WA |
| Spindle taper | ISO40(V) ISO50(H) |
| Diameter of quill | 120mm |
| Distance from spindle to table | 135-585mm |
| Distance from horizontal spindle to table | 0-390mm |
| Distance from spindle to column | 200-700mm |
| Spindle speeds | (16steps )70-4660r.p.m.(V) |
| Spindle travel | (12steps)60-1800r.p.m(H) |
| Feeding of quill | 145mm |
| Max drilling capacity of auto-feeding | (3steps)0.04 0.08 0.15 |
| Head movement | 15mm |
| Table size | 45 degrees |
| Table travel(horizontal/cross/vertical) | 1370*360 |
| Feeding range of longitudinal cross travel | 1000*320*450 |
| X,Y-axis rapid feed speed | (8steps)22-555mm/min |
| Z-axis rapid feed speed | 1080mm/min |
| Z-axis motor power | 590mm/min |
| Max weight of workpiece | 1100W |
| T-slot number /width/distance | 500kg |
| Horse power for main motor | 3/18mm/70mm |
| X,Y axis driving motor | 5.5kw(V) 4.0kw(H) |
| Overall dimension | 750W |
| N.W./G.W. | 2220*1790*2360mm |
