1. Company Introduction
2. Leading technology
As leading manufacturer and R&D center in aluminium extrusion, Giansun successfully hold the extrusion seminar, prompt advanced aluminium extrusion technology application.
Issue extrusion mould industry standard.
Share latest extrusion flow and die correction technology regularly with customers and experts
3. Production and quality control
Modern workshop with 6 sigma & quality control management system.
4. Products description

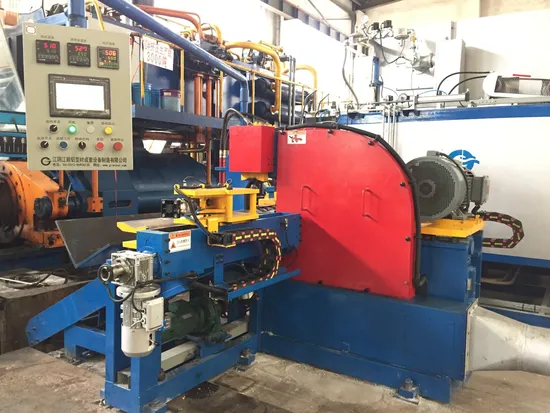

| Aluminium billet hot log saw |
|
| Basic technical parameter |
| 1 | Components: rack, fixed blade holder, moving blade holder, shear blade, front and back billet presser, sizing unit, billet pushing unit, entering rack and oil & pneumatic cylinder;
| |
| 2 | Shearing unit: made with 45# steel plate, all plates are machined (boring, milling, gouging, wire cutting);
| |
| 3 | Shear blade: material is heat resistant mold steel, heat treated so it has long life span | |
| 4 | Sizing unit: composed of connecting rod and pneumatic cylinder, the shearing length can be adjusted;
| |
| 5 | Sliding lubrication: the moving blade holder and the front billet presser is inlaid with wear resistant copper strip as sliding pair; manual lubricating oil pump is equipped for lubricating the sliding pair, reducing the shearing resistance and increasing its life span; | |
| 6 | Shearing control: composed of PLC and touch screen, has options of full automatic and semi-automatic mode; semi-automatic mode is for calibration and other irregular circumstances; with full automatic mode, the entire actions can be achieved with one button, including billet feeding, sizing, clamping, shearing, billet retracting, billet turning, resetting, greatly reducing human labor;
| |
| 7 | Chain driven short billet automatic transporting unit: motor with chains and sprockets, for transporting the cut billet to the press;
| |
| 8 | Release carbon agent through Carbon sprayer to lubricate the billet ends.
| |
5. Project photos for reference
We successfully installed 4''--25'' aluminium extrusion line, welcome to visit us
