US$3,500.00-16,000.00
|
1 Set
(MOQ)
|
Basic Info.
Working Temperature
5-40 Degree
Selling Points
Easy to Operate
Power Supply
220V/380V or Customized
Heating Method
Electricity, Diesel, Gas
Working Size
2850mm,3800mm,4750mm,5700mm,6650mm
Cabin System
Rock Wool Sandwich Panel
Heating Time
10-15 Minutes
Core Components
Rock Wool Panel, Motor,PLC
Control System
PLC/Button
Feature
Electrostatic Powder Coating Curing Oven
Advantage
Energy Saving and Cost Effective
Transport Package
Wooden Box for Export
Specification
2850(L)*2300(W)*2400(H)mm
Production Capacity
60 Sets Per Month
Packaging & Delivery
Package Size
380.00cm * 230.00cm * 240.00cm
Package Gross Weight
2400.000kg
Product Description
Product Description

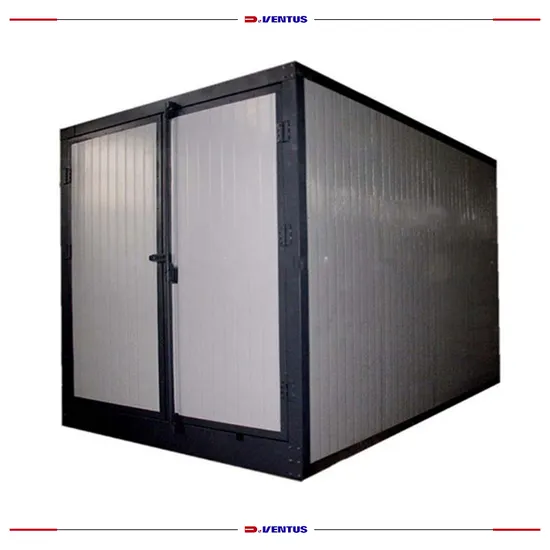

Factory Wholesale Good Quality Electrostatic Powder Coating Oven with Electric Heating
Advantages:
* Easy installation
* Lower using cost
* Energy saving
* Long service lifetime
* 304 stainless steel fan impeller * The control cabinet is touch screen + PLC, the furnace temperature, hot air temperature, and holding time are automatically controlled (the temperature is only started) * It is used as a high temperature resistant wheel for workpiece trailers.
Specification of Powder Coating Oven:
Heating system
| Italy Diesel Burner
Heat chamber and Heat exchange tubes are made of 304 and 316 stainless steel. With rock wool insulation.
|
Circulation system
| Be equipped with a high temperature centrifugal fan;
The fan impeller is made of stainless steel. The fan bearing protection method is liquid circulation cooling protection.
Independently adjustable hot air ducts are arranged inside the chamber to make the temperature in the curing furnace uniform.
The air duct is made by punching and bending with a 0.8mm galvanized sheet.
|
Guide Rail
| One side equip ground rail used for workpiece entry and exit.
|
Optional
| With transfer trolley
|
Control system
| Microcomputer control, dual display digital temperature controller, hot air temperature and oven temperature are automatically controlled.
Fan control, heating control, temperature control, indicator lights for various items, and emergency stop.
Safety device, one set of explosion-proof relief valve, when the pressure inside the curing furnace increases, it will automatically open and discharge the excess air.
|
Optional Size:
|
Outer size(L*W*H)
| Outer size(L*W*H)
|
2850*2300*2400mm
| 2650*2100*2000mm
|
3800*2300*2400mm
| 3600*2100*2000mm
|
4750*2300*2400mm
| 4550*2100*2000mm
|
5700*2300*2400mm
| 5500*2100*2000mm
|
6650*2300*2400mm
| 6450*2100*2000mm
|
Machine Display:
Different Heating Options:
Electric Heating Diesel Heating LPG Heating
