Liquid Ring Vacuum Pump Vacuum Filtration Pump with Factory Price

US$750.00 1 Piece (MOQ)

Basic Info.

Model NO.
Vacuum Pump
Transport Package
Wooden Box
Specification
As request
Trademark
Huatao
Origin
China
HS Code
8414100090
Production Capacity
100 Sets Per Month

Product Description

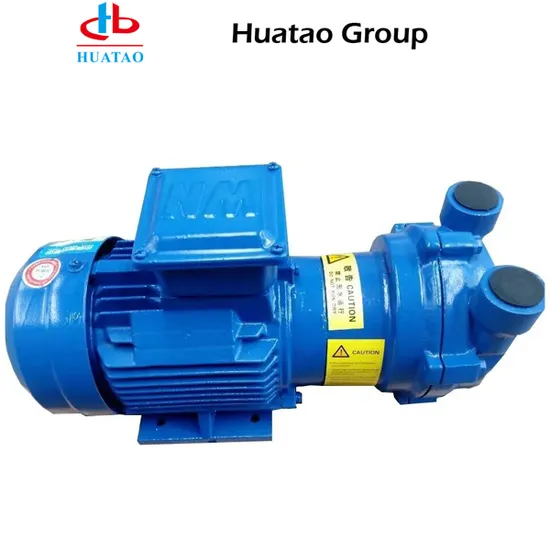

2BV Series Liquid Ring Vacuum PumpProduct Description
2BV series Liquid Ring Vacuum Pump is single stage pump that motor shaft and pump shaft is coaxial mounted. Shaft seal adopt mechanical seal with the advantages of simple structure, convenient installation, oil free and safety. 2BV series Liquid Ring Vacuum Pump is suitable for extracting gas and wet vapor, the suction pressure could achieve 33 mbar (A)(vacuum degree 97%).2BV Liquid Ring Vacuum Pump should be protected by connecting cavitation protection piping when it is working under the condition that the suction pressure is lower than 80mbar long term. The maximum suction pressure could achieve 10mbar if the pump equipped with atmospheric ejector, the ejector could installed on the inlet of the pump used as a compressor and the maximum available pressure is 0.26Mpa(A).2BV series liquid ring vacuum pumps and compressors are widely used in petroleum, chemical, pharmaceutical, food, sugar and other industries. The pump is not easy to explode when compressing and pumping flammable and explosive gases, because the compression process of the gas is isothermal during the working process, so it is more widely used.Features
1. Motor and pump are connected by coupling directly is space-saving and easy installation.
2. All pumps adopt foreign brand mechanical seal.
3. All pumps are equipped with cavitation protection pipe interface, opening the protection pipe interface could eliminate cavitation sound under guarantee the maximizing suction effect and protect the pump when the pump working under the ultimate pressure.
4. Ductile iron impeller has high strength and durability, and improves the corrosion resistance of 2BV Liquid Ring Vacuum Pump. Such as the wet parts using stainless steel material, it can work in a more serious environment.
5. Unique flexible design on discharge bore doesn't produce over compression to ensure the best efficiency in the performance range.
6. All bearings are NTN or NSK foreign brand
7. All flexible seals of PTFE that could extend the working life under the serious condition.
Application
Liquid ring vacuum pumps are especially suitable for wet process and rough vacuum process technology, such as: chemical industry, petroleum production and processing, steam turbine condenser vacuuming, plastics industry, paper industry, food industry and many other industrial applications.
Water Ring Vacuum Pump
Description
1. Water ring vacuum pumps and compressors, It is usually used to aspirate gases that
don' t contain solid particle, non-dissolves in water. No-corrosiveness in order to form vacuum and pres- sure in closed container.
2. Through changed structure material, it is too used to aspirate corroisive gases or act corrosive liquid as the working liquid.
3. This series pumps are used single- stage and single function structure with simple structure,
4. This pump with gas and water separator, many places set up aspirating and exhausting holes, pump cover set up exhausting valves, check and repair window. The gap between impeller and distributing plate are adjusted by gland of two ends of locating bearing. Installation and use are convenient, operations are sample , the maintenance are convenient.
Application:
It's widely used in paper-making,chemical industry, petrification, light industry,pharmacy,foods, metalhlrgy, building, electrical equipment, coal cleaning, metal concentration,fertilizer,etc.
Advantage:
1. convenient maintenance,reliable running,
2. high efficiency and energy saving
3. could suit to serious operation mode such as a big water discharge load impact change,etc.
Features:1. Welding impellers are used, blade are machining by primary punch mould with rational moulded lines.
2. All hub are machined, so solved fundamentally the issue of dynamic balance.
3. Impeller and pump shaft are machined by head- as- semble interface fit with reliable performance, stable running.
4. Impeller are heat treated after welded, the blade have excellent tenacity to be assured. Impact resistance and bending resistance to suit to serious operating mode of load impact change.
ENTERPRISE STRENGTH
Please ask this pump details and price , the price will be more competitive.
