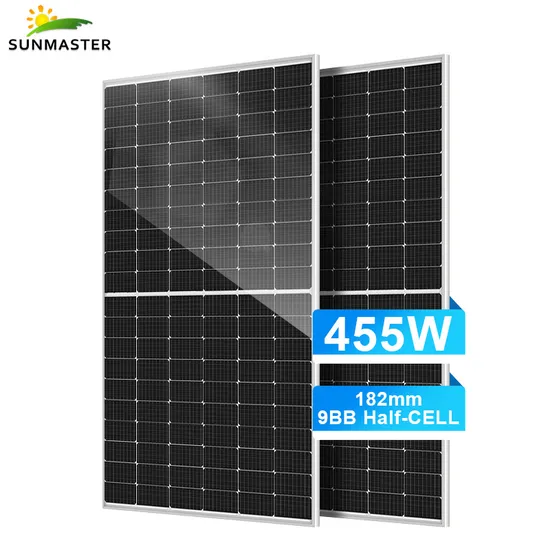

Basic Info.
Model NO.
SM7BHC 435W~455W
Number of Cells
120 (6X20)
Certification
EST, ISO, CB, CE
Material
Monocrystalline Silicon
Transport Package
Carton and Pallet
Specification
1912x1134x35mm
Production Capacity
150000W/Day
Product Description
| Maximum Power (Pmax) | 530W | 535W | 540W | 545W | 550W |
| Open Circuit Current (Voc) | 49.2V | 49.4V | 49.6V | 49.8V | 50V |
| Short Circuit Current (lsc) | 13.78A | 13.82A | 13.86A | 13.9A | 13.94A |
| Voltage at Maximum Power (Vmp) | 41V | 41.2V | 41.4V | 41.6V | 41.8V |
| Current at Maximum Power (Imp) | 12.93A | 12.99A | 130.5A | 13.11A | 13.16A |
| Module Efficiency(%) | 20.51 | 20.7 | 20.89 | 21.09 | 21.28 |
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1000V DC/1500V DC |
| Fire Resistance Rating | Class C |
| Maximum Series Fuse Rating | 30A |
Question 1: Why Choose SunMaster?
Answer 1: a) Quick Reply: We will reply your inquiry within 24 hours.
b) Factory: We have our factory. We will provide you better price with fair quality.
Question 2: .Can't find your solar panels at the store?
Answer 2. We have All the Sizes! The full range of products will be gradually launched, you can send inquiries to our sales, we can produce as your need. Welcome to visit our factory.
Question 3: What kind of Solar Cells do you have?
Answer 3:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.
Question 4 What is the lead time?
Answer 4:Normally 15 working days after advance payment.
Question 5: What is your monthly capacity?
Answer 5:Monthly capacity is about 60MW.
Question 6:What is the warranty period, how many years?
Answer 6: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.
Question 7: How is your technical support?
Answer 7: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
Question 8:How to become your agent?
Answer 8:Contact us through made in China/email, we can talk details to confirm.
Question 9: Is sample available and free?
Answer 9:Sample will charge cost, but the cost will be refund after bulk order.
Question 10 What control measures do you have in terms of module product quality?
Answer 10: SunMaster's three-dimensional capacity layout can guarantee the traceability of each manufacturing link of modules, and the highly automated production line together with the base quality, the headquarters quality and the marketing-end manufacturing supervision quality can guarantee the module quality. It selects module materials according to its high standard, and requires that new materials must be subject to extended qualification and reliability tests before being incorporated. Therefore, the quality of SunMaster modules is excellent in the evaluations by third-party labs like RETC and PVEL.
>>
