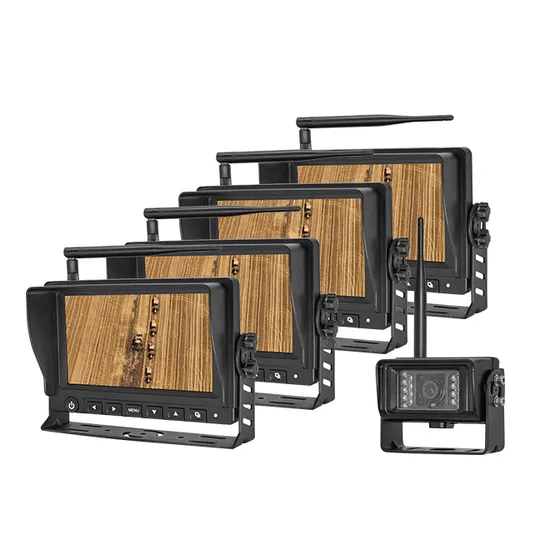

Multi-Monitor Digital Wireless Camera Surveillance System Eliminates Cabling, Applications Farm Harvester Harvesting, Tractor Transport, Viewing Silos
7"Digital Screen TFT LCD Monitor Built-in 2.4GHz Digital Wireless Receiver,Graphical menu
Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing
2.4GHz Digital Wireless Camera Aluminum Camera IP69K Waterproof and 10G Vibration, IR LEDs for Night Vision
| Digital Wireless Receive Monitor(Model:SP-766RX*4) |
| 7" Digital Screen TFT LCD Monitor with Removable Sun Visor |
| Built in 2 CH 2.4GHz Digital Wireless Receiver |
| Operation Frequency:2400 ~ 2483.5MHz |
| Receiving Sensitivity:≤-86dBm(1MHZ QPSK MD300RE) |
| Overlapping Hopping Channel:80 |
| Color System:PAL/NTSC |
| Display Resolution: 800RGB(H) X 480(V) dot |
| Wide view angle(CR>10):(up/ down): 50/70 (left/right): 70/70 |
| Brightness (cd/m2): 450 |
| Contrast ratio: 500:1 |
| Operating temperature: -20ºC to +70ºC |
| Storage temperature: -30ºC to +80ºC |
| Free Operating Voltage: DC8~32V |
| External dimensions:(L x W x T) (199 x 128 x 28mm) without mounting Sun Visor |
| Weight Approx: 400g |
| Digital Wireless Waterproof IR Camera(MODEL:DF-8275TXN*1) |
| Image Type: 1/3 inch Color CMOS |
| Built in 2.4GHz Digital wireless transmitter |
| Transmission Power:18dBm with Power control |
| Line of Sight Range:≤100M |
| Horizontal Resolution:600TV Lines |
| Effective pixel:NTSC:960(H)X480(V);PAL:960(H)X480(V) |
| Usable Illumination : 0Lux ( Built in 18pcs IR LED's for Picture Support in the Dark) |
| IR-CUT: Automatic switch, day and night mode |
| Free viewing angle: 120° |
| Waterproof: IP69K |
| Shockproof: 10G |
| Free Operating Voltage: DC8-32 Volts |
| Dimensions: 106(W) x 75(H) x 70.4(D) mm (without mounting) |
| Weight : 450g |
| Accessorie |
| U- Support Bracket,Angle Adjustment Screw,Removable Sun Visor,Electrical Connecting Cable,Antenna*3,User's Manual |
