| US$84.00 | 2 Pieces (MOQ) |

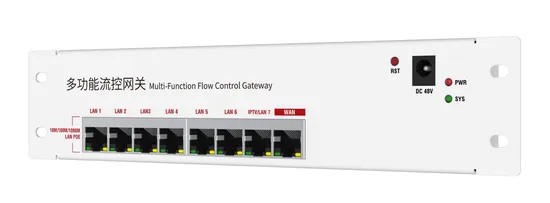

| Model | MR890 |
| CPU | MTK |
| Flash | 16MB |
| RAM | 512MB |
| PoE Out | 802.3at/ af, each port 30W max |
| PoE Power | Total 72W |
| Interface | 1*10/100M/1000M WAN 7*10/100M/1000M, support 48V PoE 1* DC 1*reset(Press and hold for 10 seconds to restore default factory configuration) |
| Indicator | PWR, SYS |
| Power Consumption | <8W |
| Size | 229*49.5*28.0mm |
| Weight | 0.34kg |
| ESD | Air: ±8KV; Touch: ±6KV |
| Electrical Surge | Common Mode: 2K, Differential Mode: 1K |
| Environment | Operating Temperature: -10ºC~40ºC Storage Temperature: -40ºC~70ºC Humidity: 5%~90% non-condensing |
| AP management | Users: 128 max |
| APs: 128 pcs | |
| Centralized and remote AP management | |
| Equipment overview | Total number of users, current number of links, number of online devices, number of offline devices |
| Real-time Internet speed, running time, user management, device management | |
| Device information, device description, internal network information, external network information | |
| Equipment management | Device List |
| Template settings | |
| Equipment upgrade | |
| Service configuration | |
| IPTV settings | |
| Automatic roaming | |
| User Management | user list |
| User speed limit | |
| Security center | IP filter |
| MAC filter | |
| URL filter | |
| Port Mapping | |
| DMZ setting | |
| Internet function | Connection method: static address, dynamic acquisition (DHCP), broadband dial-up (PPPOE), bypass mode. |
| DHCP server: It can be a built-in DHCP server or an external DHCP server. | |
| Cloud platform server | |
| System Management | Back up configuration information |
| Restore configuration information | |
| reset | |
| Restart now | |
| Firmware upgrade | |
| Time management includes system display time and time synchronization | |
| System log |
| Router | 1 |
| Power supply | 1 |
| Power cord | 2 |
| Gift Box | 1 |
| Screw pack | 1 |
