| US$47,000.00-68,400.00 | 1 set (MOQ) |

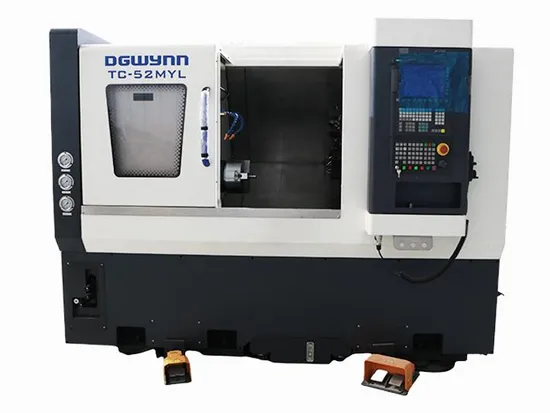

| Item | Describe | TC - 52L | TC - 52ML | TC - 52MYL | Unit |
| Ability | Max. swing over bed | 560 | mm | ||
| Swing over saddle | 400 | mm | |||
| Max. turning length | 500 | 450 | 480 | mm | |
| Max. turning Dia. | 325 | 320 | 380 | mm | |
| Max. bar size | 52 | mm | |||
| X/Y/Z Stroke | X axis stroke | 230(205+25) | 210(185+25) | 220(205+15) | mm |
| Z axis stroke | 570 | 560 | 590 | mm | |
| Y axis stroke | 95 ( ± 47.5 ) | mm | |||
| Rapid Feed Rate | 24/24 | 24/24 | 24/24/20 | m/min | |
| Turret | Turret Driven Method | Servo knife tower | impetus knife tower | impetus knife tower | SET |
| Tool Qty. | 12 | 12 | 12 | A | |
| Shank specifications | 25 | mm | |||
| Power-head specification | ER32 | ER25 | mm | ||
| Boring tool holder specification | Ø40 | Ø32 | mm | ||
| Milling Spindle Speed | 5000 | rpm | |||
| Motor power of Power-head | 3.55 | kw | |||
| Spindle | Spindle nose | A2-6 | |||
| Spindle through hole Dia. | Ø66 | mm | |||
| Tailstock | Tailstock travel | 450 | mm | ||
| Thimble taper | MT-4 | ||||
| Control System | NC controller | Siemens - 828D | A | ||
| Spindle motor power | 22 | kw | |||
| Spindle Speed | 4000 | rpm | |||
| X/Z Servo Motors | 3.3 | kw | |||
| Y Axis Servo Motors | 2.3 | kw | |||
| Dimensions | L × W × H | 2700*1820*1900 | mm | ||
| Weight | about 4.6 | about 4.8 | Ton | ||
