11kv 12kv 15kv 25kv 24kv 33kv 35kv 36kv 70kn Dead End Polymer Composite Insulator High Voltage Insulator Composite Insulator Rubber Insulator Pin Insulator

Product Description

Production Process of Polymeric Deadend Insulator

Production Description

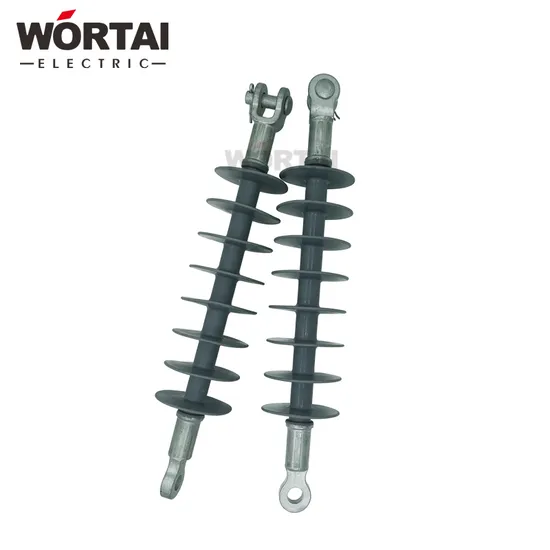

WORTAI polymeric insulators DS series are use for electrical power distribution suspension or dead end instalation, replacing the the conventional porcelain or glass chains. Polymeric insulators produced initially from a fiberglass rod (core) which is fixed to the metal fittings (clevis and tongue in special forged steel with hot-dip galvanized coating) and later then insulating envelope (in high quality silicone rubber) is applied on this set, resulting in a compact, light insulator of great mechanical resistence and highly resistant to weather conditions. The main advantage with the use of WORTAI DS series insulators are:
• The housing and sheds of the insulator are made of silicone rubber, one shot injection moulding; this ensures
that the interface between the rubber and rod is impenetrable against moisture ingress.
• The core rod of insulator is made of a fiberglass that has excellent electrical and mechanical strength.
• Leakage current surge suppression due to high level of hydrophobicity of silicone rubber.
• Better performance in polluted areas.
• Light weight for handling and installation.
• The silicone insulators are manufactured and tested according to the standards ANSI C29.13 and IEC 1109

Product Paramenters

SPECIFICATION	UNIT	CATALOGUE NUMBER
		FXBW-15/70	FXBW-28/70	FXBW-35/70	FXBW-46/70
Voltage Class	kV	15	28	35	46
ANSI Class	-	DS15	DS28	DS35	DS46
Specified Mechanical Load (SML)	kN	70	70	70	70
Section Length	mm	330	445	482	559
Dry Arcing Distance	mm	203	311	345	426
Leakage Distance	mm	420	660	800	954
Low Frequency Dry Flashover	kV	110	130	150	180
Low Frequency Wet Flashover	kV	75	110	135	145
Critical Impulse Flshover(Pos.)	kV	140	200	235	280
Critical Impulse Flshover(Neg.)	-	160	225	255	290
Number of sheds	-	4	6	7	9
Note:The catalogue in the above table are for "CT"clevis-tongue fittings. For other combinations of end fittings,
specified mechanical strengths or require a longer creepage distance etc, please indicate before ordering.
