Low Voltage Factory Price LV Yjlv Yjlv32 0.6/1kv Single 1 2 3 4 5 Core XLPE PVC Swa Armored Underground Aluminium Power Cable

Product Description

Product Description

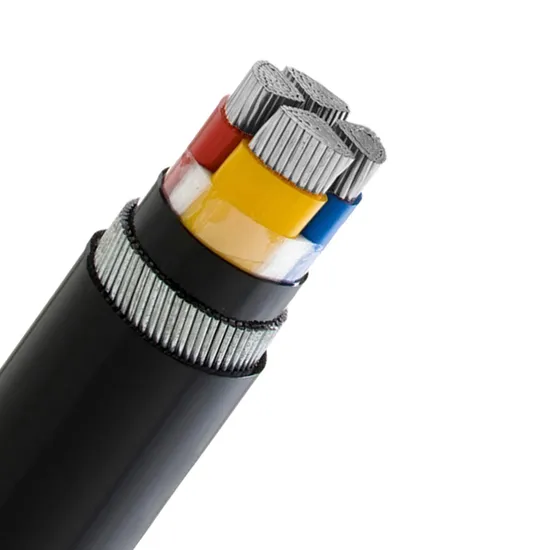

Low Voltage LV 0.6/1kv Single 1 2 3 4 5 Core XLPE PVC SWA Armored Underground Aluminium Power Wire Cable
Conductor: Aluminium
Insulation/Jacket: XLPE/PVC
Armoured: SWA(Steel Wire Armoured) / STA(Steel Tape Armoured) or Non-Armoured
Cores: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2
Section Area: 1.5mm2-800mm2
Standard: IEC 60502, BS 7870, GB/T12706 or other.
Packaging: Iron Or Wooden Drum
Application: Building, Engineered, Railway, Plant construction, School, Hospital, Underground and so on.We can customize
the size according to your requirement.

HIGH ELECTRICAL CONDUCTIVITY COPPER OR ALUMINIUM CONDUCTOR Copper or aluminium stranded(Class 2) conductors according to lEC 60228
	HIGH RESISTANCE PVC/XLPE INSULATION Available with Cross-linked Polyethylene(XLPE)or Polyvinyl Chloride(PVC) insulation
UV RESISTANCE & FLAME RETARDANT PVC JACKET Provided with flame retardant PVC jacket to pass flame propagation test to lEC60332-1
	CUSTOMIZED DESIGNS Available in Armoured/Non-armoured and Shielded/Non-shielded constructions

Cross Section	Stranding	Approx Weight	Approx Overall Diameter	Current Rating Laid Direct
mm²	mm	kg/km	mm	amp
4 x 2.5	7/0.53	351	12.88	32
4 x 2.5	7/0.67	429	14.43	42
4 x 6.0	7/1.04	670	17.87	69
4 x 10	7/1.35	998	20.1	92
4 x 16	7/1.70	1,272	22.4	119
4 x 25	7/2.14	1,940	27	152
4 x 35	7/2.52	2,390	30.1	182
4 x 50	19/1.78	2,925	31.5	217
4 x 70	19/2.14	4,200	37.4	266
4 x 95	19/2.52	5,335	40.9	319
4 x 120	37/2.03	6,925	46.6	363
4 x 150	37/2.25	8,200	50.2	406
4 x 185	37/2.52	9,975	55.8	458
4 x 240	61/2.52	12,700	62.5	529
4 x 300	61/2.85	15,275	67.4	592
4 x 400	61/3.20	19,875	77	667

Quality Inspection
Customer Project
Company Profile
Henan Huadong Cable Co., Ltd. Is a Joint Stock Enterprise Integrated in Cable Production, And Domestic & International
Trade,Founded in 1999, Located in Xiuwu Industrial Zone, Jiaozuo and Occupied 150,000 Square Meters, With Advanced
20 Sets Equipments and 25 Sets Testing Machines, Annual Production Capacity Is over 15 Million Kilometers
We Mainly Produce and Export 1-35kv Power Cables, AAC,ACSR,AAAC Bare Conductors,Overhead Aerial Bundled ABC
Cables,Control Cables,Welding Cables, Rubber Cables, Mining Cables,Crane And Other Special Use Cables.
Certifications
Packaging & Shipping
Cooperative Customers
FAQ
1.You are manufacturer or trader ?Huadong cable is a professional cable&wire manufacturer with more than 20 years experience.Our factory located in jiaozuo city,henan province,china.2.How can I get the quotation of the products ?Pls send inquiry to us,we will reply you within 12 hours.3.What does your company do regarding quality control?1) all raw materials we selected are the highest quality.2) professional and skillful workers care every details in handling the producing.3) quality control department is specially responsible for quality checking in each process.4.Do you provide OEM project service?Yes,OEM & ODM order is warmly welcomed.Our technical engineers can give you the professional suggestions.5.Can I get the sample?Yes,pls send inquiry to us,then our sales manager will arrange the samples for you

---
