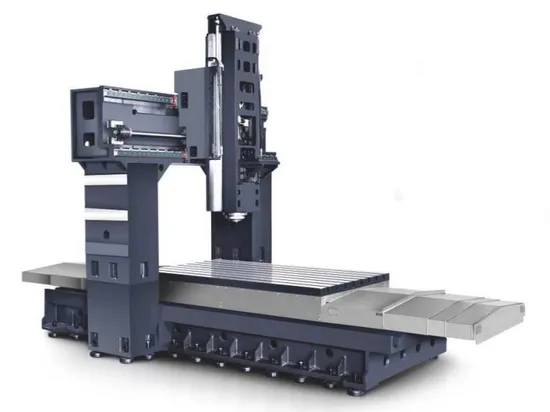

CNC High-Speed Gantry Machining Center Series

Product Description

High quality configuration
High quality configuration is an important part of high quality machine tools. Each machine tool carefully selected Germany, Japan, China Taiwan and other well-known brands of high-quality components, to ensure the continuous stable and efficient operation of machine tools.
All precision datum surfaces, such as between the spindle head and spindle, between the ball screw mounting objects and mounting surfaces, are used for manual scraping and repairing precision, and the contact rate can be maximized to obtain a reliable support datum. Through scraping and grinding operation, the amount of a time is about 1-3μm, and the flatness, straight Angle and true straightness which are difficult to be achieved by mechanical processing can be obtained to ensure the excellent quality of the machine.
To provide customers with high quality products and satisfactory service, the factory products for high standard control and inspection, for each process to develop strict technical standards, the perfect quality demands to implement every link of production, to achieve product quality assurance and technology upgrade.

Technical Parameter

		Unit	SR-LM2013	SR-LM2515	SR-LM3018	SR-LM4022	SR-LM5027A
Working Table	Working Table size (length × width)	mm	2200×1100	2700x1300	3000×1500	4000×1800	5000×2300
	Maximum load of table	kg	6000	8000	12000	16000	18000
	Type slot (Slot number x slot width x pitch)	mm	7-22×150	7-22×175	7-22×200	9-22×200	11-22×200
	Triaxial stroke (X/Y/Z)	mm	2000/1300/900	2500/1500/900	3000/1800/900	4200/2200/1000	5200/2700/1000
	Distance from spindle end face to work surface	mm	1350	1550	1800	2230	2730
	Distance between spindle center and column guide rail surface	mm	180-1080	150-1050	150-1050	310-1310	310-1310
Feeding system	CNC		MITSUBISHI:M80A/M80B.FANUC:0i-MD/0imate-MD.SIEMENS
	Rapid displacement in the X/Y/Z axis	m/mI n	12/12/10	10/12/10	12/12/10	10/12/10	10/12/10
	Maximum cutting feed speed	mm/min	0-10000	0-10000	0-10000	0-10000	0-10000
	Standard cutter quantity		BT50/24	BT50/24	BT50/24	BT50/32	BT50/32
Automatic Tool Changing System	Maximum diameter/length of tool	mm	φ110/300	φ110/300	φ110/300	φ125/300	φ125/300
	Tool exchange mode		Air-operated	Air-operated	Air-operated	Air-operated	Air-operated
	Max tool weight	kg	18	18	18	18	18
Precision	Positioning accuracy	mm	0.021	0.021	0.021	0.021	0.021
	Repeated accuracy	mm	0.02	0.02	0.02	0.02	0.02
Form of guide rail	X/Y/Z axis guide		X:2-45/Y:2-45/Z:hard rail	X:2-45/Y:2-45 /Z;hard rail	X2-55/Y:2-55/Z: Rectangular slideway	X:2-55/Y:2-55/Z:hard rail	X:2-55/Y:2-55/Z: hard rail
Spindle system	Spindle system (Model/mounting diameter)		BT50/φ190	BT50/φ190	BT50/φ190	BT50/φ200	BT50/φ200
	Belt drive milling head, maximum speed	rpm	6000	6000	0	4000	4000
	Spindle moto	KW	15/18.5	15/18.5	22/26	22/26	22/26
Air Pressure	Air demand	kg/cm2	≥6	≥6	≥6	≥6	≥6
	Air Ventilation	m³/min	20.5	20.5	20.5	20.5	20.5
Other	Machine weight	kg	17000	20000	23000	37000	51000
	Overall dimensions (length x width x height)	mm	6110×3120×4480 (The highest point of the trip)	7150×3320×4536 (The highest point of the trip)	8150×4200×4580 (The highest point of the trip)	9900×4650×5167 (The highest point of the trip)	11840×5150×5167 (The highest point of the trip)

Equipment Features
1. Suitable for large mold, parts processing.
2. High quality Mihanna castings, the structure through finite element analysis, to achieve the best stability.
3. All the X, Y and Z axes shall use precision large-diameter lead screw, and be preloaded appropriately. The tail end shall be predrawn.
4. Adopt precision ultra-heavy line rail to ensure high precision/high load processing requirements.
5. Set line rail and hard rail machining center machine two advantages in one, X/Y axis using line rail, to ensure its moving speed and processing accuracy, Z axis using hard rail, to ensure its heavy cutting and high rigidity.
.
