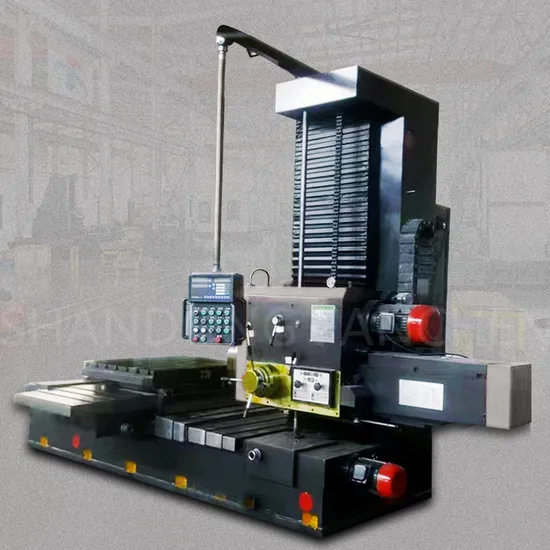

High Rigidity Heavy Cutting Tx6111b Horizontal CNC Boring and Milling Machine

US$399,000.00-999,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
TX6111B
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
CNC Boring and Milling Machine
Certification
GS, CE, ISO 9001
Condition
New
Classification
Tx6111b
Boring Shaft Diameter
φ110
Hilt
Bt40
Spindle Taper Hole
Mohs 6
Spindle Speed/Series
22
Main Shaft Speed
1000r/Min
Power of Spindle Motor
7.5kw
Distance From Spindle Center to Worktop
1225mm
Table Table Size
1100/960mm
X-Axis Travel
900mm
Y-Axis Travel
900mm
Z-Axis Travel
1400mm
W-Axis Travel
600mm
Fast Speed
2500mm
Machine Shape Size
4910/2454/2750mm
Transport Package
Xyloid
Specification
4910/2454/2750MM
Trademark
FANCHEN
Origin
China
Production Capacity
100

Packaging & Delivery

Package Size
491.00cm * 245.40cm * 275.00cm
Package Gross Weight
2500.000kg

Product Description

Classification Project Unit Model TX6111B TX6111B3 TX6113 TX130
Machine head Boring shaft diameter mm φ110 φ110 φ130 φ130
Hilt / BT40 BT40 BT50 BT50
Spindle taper hole / Mohs 6 Mohs 6 Metric 80 Metric 80
Spindle speed/series 22 22 24 24
Main shaft speed r/min 1000 1000 800 800
Power of spindle motor kW 7.5 7.5 15 22/26
Distance from spindle center to worktop mm 1225 1225 3136 2590
Maximum axial resistance of the spindle N 12250 12250 31360 25900
Workbench Table table size mm 1100/960 1250/1100 1600/1400 2000/3000
Maximum bearing capacity of table kg 2500 2500 8000 9000
Minimum fraction unit ° 1 1 1 1
T-slot size mm 22 22 28 28
T-shaped slots/Number of slots 18 18 18 18
X-axis travel mm 900 1600 1600 6000
Y-axis travel mm 900 1200 1400 2000
Z-axis travel mm 1400 1400 800 800
W-axis travel mm 600 600 700 700
Flat spinning disc slider travel mm 180 180 250 250
Fast speed 2500 2500 2500 2500
Positioning accuracy mm 0.025 0.025 0.025 0.025
Repeat positioning accuracy mm 0.018 0.018 0.018 0.018
Machine shape size mm 4910/2454/2750 5028/3350/3080 6995/3647/3442 10500/6500/4500
Weight KG 11500 14000 24000 52000

FAQ
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
