Product Details
Product Description
Product Description

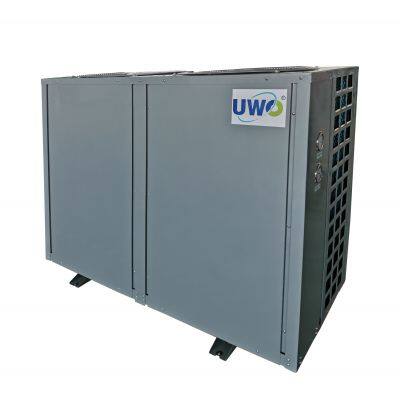

Top discharge type has more efficient heat exchanging with ambient air, and more flexibility in installation.
With R32 or R410a refrigerant, top class rotary or scroll compressor, cooling & heating, reversible circle defrosting and practical design, providing an economical pool heating solution up to 28.5KW.
| Model No. |
| UHP120CT | UHP140CT-3 | UHP180CT-3
| UHP210CT-3 | UHP305CT-3 | UHP350CT-3 | UHP450CT-3 |
|
| A28°C,W28°C |
|
|
|
|
|
|
|
|
|
| Heating capacity | kW | 11.7 | 13.6
| 17.7
| 20.5
| 30.5
| 34.6 | 45.2 |
|
| Power consumption | kW | 2.30 | 2.72
| 3.61
| 4.10
| 6.22
| 7.06
| 9.22 |
|
| C.O.P | W/W | 5.1 | 5.0
| 4.9
| 5.0
| 4.9 | 4.9
| 4.9 |
|
| A15°C,W26°C |
|
|
|
|
|
|
|
|
|
| Heating capacity | kW | 8.04 | 9.27
| 12.53 | 14.35
| 21.66
| 24.57
| 32.09 |
|
| Power consumption | kW | 1.91 | 2.21
| 3.30
| 3.50
| 5.70 | 6.47
| 8.45 |
|
| C.O.P | W/W | 4.20 | 4.20
| 3.8
| 4.1
| 3.8
| 3.8 | 3.8 |
|
|
|
|
|
|
|
|
|
|
|
| Compressor |
| Scroll | / R410A / | PANASONIC
|
|
|
|
|
|
| Voltage |
| 220-240V/50Hz/1PH | 380-415V/50Hz/3PH | 380-415V/50Hz/3PH | 380-415V/50Hz/3PH | 380-415V/50Hz/3PH | 380-415V/50Hz/3PH | 380-415V/50Hz/3PH |
|
| Rated current | (A) | 10.0 | 7.2
| 9.5
| 10.8
| 16.4
| 18.6
| 18.6 |
|
| Noise level(10m) | dB(A) | 42 | 42
| 46
| 47
| 49
| 56
| 56 |
|
| Net weight | mm | 88 | 95
| 170
| 175 | 205 | 256 | 256 |
|
| Net dimension(WxDxH) | mm | 730*750*1157
| 730*750*1157 | 730*750*1157 | 730*750*1157 | 730*750*1157 | 1453*750*1157 | 1453*750*1157 |
|
>>
