CNC Mismatch Machine Nz-50 Five-Axis Four-Linkage High Precision CNC Step Grinding Machine Good Price

Product Description

Detailed Photos
Product Description

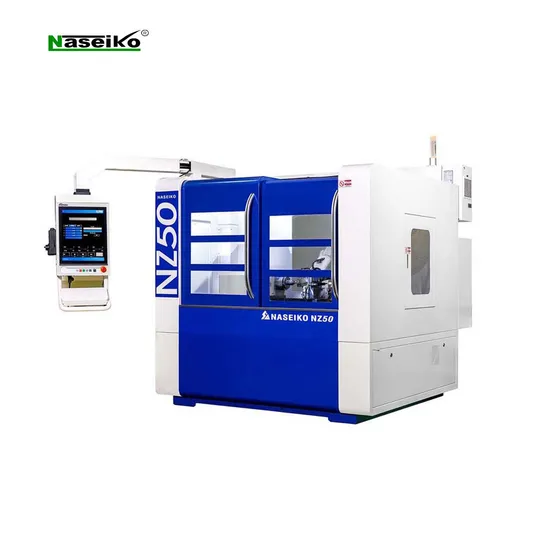

NZ-50 5 axis 4 linkage CNC grinder
1.1 X axis, horizontal straight CNC axis, Australia Anca servo motor, THK precision
ball leadscrew, THK precision roller guide rail.
1.2 Y axis, horizontal linear CNC axis, Australia Anca servo motor, THK precision
ball leadscrew, THK precision roller guide rail.
1.3 Z axis, horizontal straight CNC axis, Australia Anca servo motor, THK precision
ball leadscrew, THK precision roller guide rail.
1.4 V axis, horizontal straight CNC axis, Australia Anca servo motor, THK precision
ball leadscrew, THK precision roller guide rail.
1.5 C axis: infinite rotation, speed: 0 ~ 3000 RPM,.
1.6 High precision imported universal probe (probe: workpiece detection).
1.7 Overall marble bed body.
1.8 Seal machine cover, imported acrylic double door, convenient operation
and maintenance.
12
1.9 Mobile hand pulse with magnet for easy operation.
1 .10 Special permanent magnet electric spindle, the grinding wheel
flange can be dismantled to the grinding wheel dressing machine
to repair the grinding wheel.
1.11 Install pipe sealed oil-proof LED lamp in the machine.
Guide rail
Japan THK P level
Leadscrew
Japan THK C3
Main axis (coarse grinding)
Taiwan (Weihong)
Spindle (fine grinding)
Taiwan (Weihong)
Servo motor
Anca Servo (Absolute)
Numerical control system
Australia (ANCA)
Software
Australia (ANCA
Software)
Probe
High precision (universal) Product Parameters

---
