Top Choice for Moving Diesel Concrete Mixer

Product Description

Best Price Lightweight Portable Convenient For Moving Diesel RDCM Used Concrete Mixer Introducing the Best Price Lightweight Portable Diesel Rdcm Used Concrete Mixer from Topall Machinery Co., Ltd. This self-loading mobile diesel concrete mixer is perfect for construction projects. With a 1-year warranty and online video support, it offers high-quality performance and easy transportation. Get your hands on this reliable and efficient concrete mixer today!

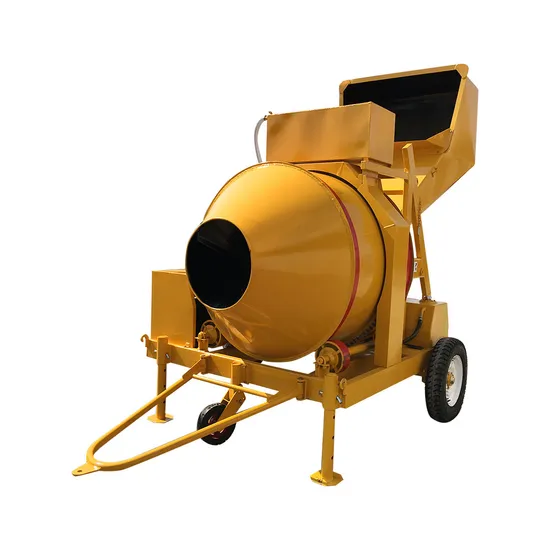

Reverse Drum Concrete Mixer With Hydraulic Tipping Hopper Model: RDCM500-16DH
Product Description Heavy duty, reversing drum, hydraulic feed concrete mixer High mixing efficiency, enabling the mixer to produce up to 40 batches per hour 14 cubic meters output Standard machine includes water tank with water meter Hand/electric start Air cooled diesel engine / water cooling diesel engine are optional Towable chassis with two pneumatic-tired wheels Jacking system allows wheel removal for storage during long-term use Experience the power and efficiency of the Reverse Drum Concrete Mixer With Hydraulic Tipping Hopper. This heavy-duty mixer is designed to handle your concrete mixing needs with ease. With its hydraulic feed system, you can effortlessly mix concrete for various projects.
Thanks to its high mixing efficiency, this mixer can produce up to 40 batches per hour, ensuring that you can complete your projects in a timely manner. The 14 cubic meters output allows you to mix a large quantity of concrete at once, saving you time and effort.
The standard machine includes a water tank with a water meter, allowing you to accurately measure the amount of water needed for your concrete mix. Whether you prefer a hand or electric start, this mixer offers both options for your convenience.
Choose between an air cooled diesel engine or a water cooling diesel engine, depending on your specific requirements. The towable chassis with two pneumatic-tired wheels makes it easy to transport the mixer to different job sites.
Additionally, the jacking system allows for wheel removal, making it convenient for long-term storage when the mixer is not in use. Trust in the durability and reliability of the Reverse Drum Concrete Mixer With Hydraulic Tipping Hopper for all your concrete mixing needs.
For more information, please contact Topall Machinery Co., Ltd.

Technical Parameters

Model	RDCM350-11DH	RDCM500-16DH
Drum volume	2210L	2600L
Capacity of loading	560L	750L
Capacity of discharging	350L	500L
Drum thickness	5mm	5mm
Hopper thickness	3mm	3mm
Capacity of water tank	110L	140L
Output	10-14 cbm/hour	18 -22 cbm/hour
Drum rotating speed	13r.p.m	13r.p.m
Max. Towing speed	20km/h	20km/h
Power	Changfa CF1100BNM Diesel engine	Changfa CF1115BNM Diesel engine
Power source	11kw/15hp	15kw/20hp
Overall size (L×W×H)	3250×2240×3200mm	3750×2240×3800mm
Total weight	1790kg	2050kg
Hopper lifting model	Hydraulic tipping hopper
Towing wheel	Two wheels or Four wheels
Container Loading Plan
1×20' container can be loaded with	3 Unit	2 Unit
1× 40'GP container can be loaded with	6 Unit	4 Unit

---
