144 Port Sc/St/FC/ Optical Distribution Frame 19 Inch Cabinet ODF

Product Description

Drawer Type Fiber Patch Panel Optical Distribution Frame ODF 96 cores

Product name	horizontal fiber optic joint closure
Type	1U, 2U, 4U, 6U,8U,12U
Model Number	Drawer type
Dimension	480*250*1U/2U/4U/6U/8U/12U
Material	1.2mm Cold Rolled Sheet
Color	White ,Black,Grey
Capacity	12/24/36/48/96/144 cores
Fiber Type	LC,SC,FC,ST
Material	Cold-rolling steel
Package	1 pcs /box
Certification	CE,ISO 9001
Operating Temperature	-25°C-+55°C
Brand	Yoohon

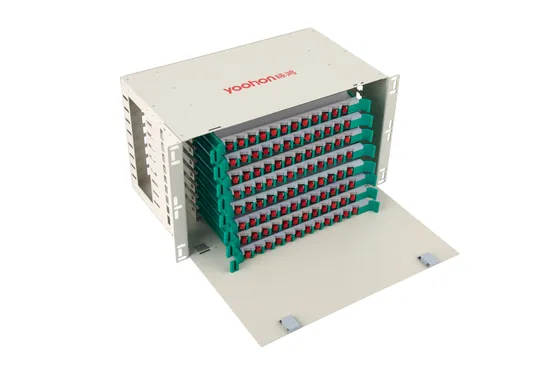

96-core SC drawer optical fiber distribution frame terminal box, Product size 430x250x255mm.1.2mm thickened cold-rolled plate, epoxy spray plastic, strong and durable, flexible to meet the wiring scheme of the machine room, Latch design to protect pigtail,safe and smooth guide rail.
Description
Fiber optic distribution frame(ODF) integrates fiber splicing, storage and cable connections together in a unit.
It can manage both bundle type and ribbon type fiber cables, used in center office, optical cross connection point and network access point in fiber access network projects. It is with large working space to integrate the pigtail, cables and adapters for fiber management.
Rack mounted fiber optic patch panel is standard 19 inch design, cold roll steel box, with blue or green splice trays inside, front & rear cover can be opened.

Feature
Cold-roll steel, electrostatic painting
Modular design blue splice tray, ABS plastic; 12 cores per tray FC, SC, LC… adapter can be loaded.
Slide out splice tray for easy cable management Suitable for 19" standard optic distribution cabinets
With front cover; rear cover can be opened, convenient for cable management. Cable entry ports suitable for single fiber, bundle & ribbon fiber cables Reasonable design ensures the cables are in good order
Rack mounted type, indoor using;
White, black, grey … color painting optional 12, 24, 48, 96 … capacity customized
Application
Telecommunications subscriber loop Fiber to the home (FTTH)
LAN/WAN CATV
HNICAL DATA
Specification
1. Under the general air pressure, 500VDC, insulation resistance≥1000MΩ;
2. The high voltage protection can undertake 3000VDC, no spark-through and flashover within 1 minute.
3. Technical and quality grade reaches the ISO/IEC11801 requirement.
4. Working temperature-20°C~+55°C;
5. Working humidity≤95% (30°C);
6. Working atmospheric pressure 70~106KPa
Order Information

Model	Capacity	Height	Dimension	Remark
YH-ODF-12U	144 cores	12U	430x250x365mm	12pcs of splice tray inside
YH-ODF-8U	96 cores	8U	430x250x255mm	8pcs of splice tray inside
YH-ODF-6U	72 cores	6U	430x250x200mm	6pcs of splice tray inside
YH-ODF-4U	48 cores	4U	430x250x145mm	4pcs of splice tray inside
YH-ODF-2U	24 cores	2U	430x250x90mm	2pcs of splice tray inside
YH-ODF-1U	12 cores	1U	430x250x44mm	1pcs of splice tray inside

OEM/ODM Service (1) OEM/ODM project is welcome .with our professional top service .you could make your own special and new design. (2) The MOQ for customized products is varied from 500pcs to 5000pcs or even more. (3) We always respect our customers'copyright or business secrets Other Details: 1. Samples policy For Samll quantity samples,we offer without charges, But shipping and taxes paid by the buyer. 2. Our main market Latin America, Africa, Mid East, Asia. 3. About payment T/T,L/C,and other Payment can be discussed. We Provide You With Sincerely Service, if you interest, pls contact us NOW!!! Our Services OEM/ODM Service (1) OEM/ODM project is welcome .With our professional top service .You could make your own special and new design. (2) The MOQ for customized products is varied from 500pcs to 5000pcs or even more. (3) We always respect our customers'copyright or business secrets Other Details: 1.Samples policy For Samll quantity samples,we offer without charges, But shipping and taxes paid by the buyer. 2.Our main market Latin America, Africa, Mid East, Asia. 3.About payment T/T,L/C,and other Payment can be discussed. We Provide You With Sincerely Service, if you interest, pls contact us NOW!!!

---
