220 Volt Wind Generator Wind Turbine Generator Price

Product Description

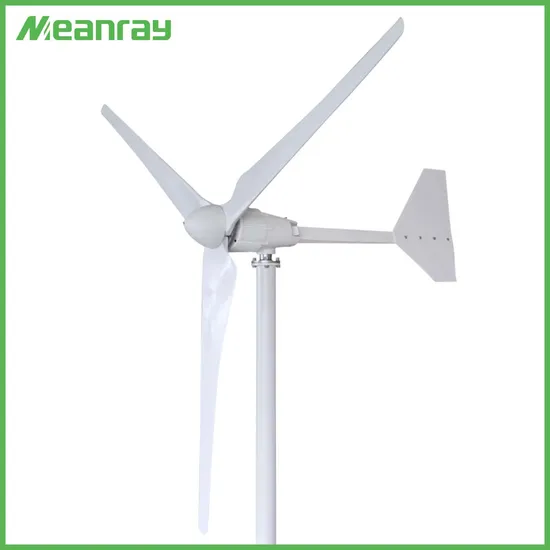

220 volt wind generator wind turbine generator price
Product description of 220 volt wind generator:
1) Housing, office, farm and factory;
2) Telecommunications Station
3) TV Transfer Station;
4) Monitoring Station (military, hydrology, observatory)
5) Water-pumping Station; Technical data of 220 volt wind generator:

Model No.	220 volt wind generator wind turbine generator price
Configuration	3 Blades, Horizontal axis, Upwind
Rotor Diameter	9.0 m / 29.5 ft
Swept Area	63.62 m2 / 541.1 ft2
Direction of Rotation	Clockwise looking upwind
Blade Material	Fiberglass reinforced composite
Rated Power	20 kW @ 11.5m/s
Battery Bank Voltage	240 Vdc
System Output Voltage	380 Vac three phase
Cut-in Wind Speed	3 m/s
Rated rotating rate	180 r/min
Working Wind Speed	3-25 m/s
Survival Wind Speed	50 m/s
Alternator	Permanent magnet alternator, SCF technology
Alternator Weight	496 kg / 1093.5 lbs
Energy monitoring & User control	Siemens PLC controller with touch screen
Gearbox	None, Direct drive with front generator design
Over Speed Regulation	Auto Yawing & Hydraulic Braking(optional)
Shutting Down Method	Manual & Automatic electromagnetism Braking
Warranty	5 years

Product characteristics of 220 volt wind generator:
Ø Rotation speed controlled by passive variable pitch mechanism with centrifugal force.
Ø Power curve optimized by two-stage springs to balance the pitch driving force.
Ø No tail vane, down-wind designing with electricity transmitted by collecting ring.
Ø 3-phase direct drive permanent magnet generator with maintenance free.
Ø All surfaces sealed with outer parts pot galvanized, antirust.
Ø Quick installation & easy operating.
Ø Compact structure with streamline and nice appearance.
Ø Running stably and safely with 15 years lifetime, easy maintenance.
