Perfect Laser - 20W 30W 50W 100 Watts Desktop Metal Steel Plastic Raycus Jpt Mopa Fiber Laser Engraving Marking Machines

Product Description

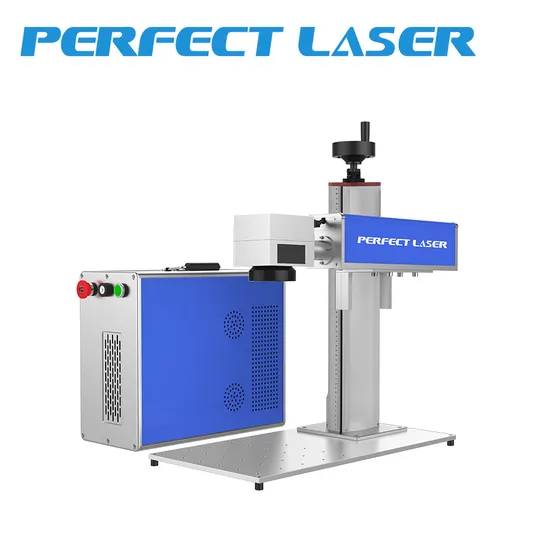

Perfect Laser - 20W 30W 50W 100 Watts Desktop Metal Steel Plastic Raycus Jpt Mopa Fiber Laser Engraving Marking Machines
(Model : PEDB-400B)
Product Description
Perfect Laser's Fiber Laser Marking Machine adopts international most advanced technology and the laser source is fiber with Germany IPG technology, lifetime can reach 100, 000 hours, 8-10 years without any consumables and maintenance. The diode coupling with fiber to process pump, the pump light will course the particles reverse which can emit high quality laser beam. This is the best choice for the customers who have special requirements to the smallest & finest laser beam and character.
Sample & Application
Application materials: Perfect Laser's Fiber Laser Marking Machine is widely for stainless steel marking, carbon steel marking, iron marking, aluminum marking, copper marking, brass marking, anodized and coated materials marking, etc., and non-metallic such as nylon marking, ABS/PVC/PC board marking, hard plastics marking, rubber marking, resin marking, ceramic marking etc. In the industries of electronic and communication products, IC products, electric lines, cable computer components and electric appliance.
Machine Details
1. Best Marking Effect: The laser beam of fiber laser is fine and thin. It can provide the best marking effect among all the laser machine machines. Especially good in smallest character marking, such as mark on IC chip.
2. Deep Marking: Perfect Laser's Fiber Laser Marking Machine can make deep marking up to 1.0mm on stainless steel and aluminum. While YAG and Diode marking only could mark 0.2mm-0.3mm.
3. Higher Accuracy: Fiber laser can reach unto 0.001mm precision, while diode only 0.01mm.
4.10 Years Long lifetime: We used the fiber laser module made by Germany IPG technology, the lifetime of the fiber laser device is 100, 000 hours, so the machine can be used for 8-10 years.
5. No consumables: Fiber laser machine can be used for 8-10 years without any consumables.
6. No need to adjust the laser path.
7. Free of Maintenance.
8. Use Integrated Air Cooling.
9. Low Power Consumption: Low cost, only 0.5kw/hour.
10. Small and compact: The volume of Perfect Laser's Fiber Laser Marking Machine is small, only 0.15 M3.
Product Parameters

Product Name	Desktop Fiber Laser Marking Machine
Model No.	PEDB-400B
Computer	Not includes PC
Laser Source
IPG Series	Pulsed, High Energy Ytterbium Fiber Lasers
Mode of operation	Pulsed
Polarization	random
Standard output power	20W - 50W For PEDB-400A /400B /400C 20W - 100W For PEDB-400D
Central emission wavelength	1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%
Emission Bandwidth(FWHM)	<10 nm
Long-term average power instability	<5%
Pulse width, (FWHM)	100 ns
Laser switching ON time	180 μsec
Laser switching OFF time	180 μsec
Pulse Repetition Rate* kHz	20-80 kHz
Energy per pulse (PRR = 20 kHz)	0.95 mJ
Typical beam quality, M2	<1.8
Output fiber delivery length	3m
Operating voltage	220V
Max. Power consumption	600W
Net Dimensions	80*38*72cm
Net Weight	53 kgs
Gross Weight	70 kgs
Laser system
Scanning Speed	0-10000mm/s
Marking Speed	0-7000mm/s
Marking size	110mm×110mm (F-theta 160)
Spot size	≤ 40 micron (F-theta 160)
Cooling unit	Air cooled
Pilot laser	650nm diode laser, visible red light for marking guide
Continuous working time	≥16h
Humidity	45~85% (no condensation)
Operating temperature	0~40ºC
Control units	Laser Mark (English Version)

Our Service
1:Free Training by VCD: We will supply the machine with , and in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by E-mail, fax, telephone, MSN, ICQ and so on, when you meet some problems of installation, using or adjusting. (Recommend)
2:Free Training in Perfect Laser's Factory: You can sent operator to Perfect Laser factory for free training. Perfect Laser will offer professional guide for free. It is direct and effective face-to-face training. Here we have well-assembled equipments, all sorts of tools and testing facility.
Training Time: 1-3 days (Recommend)
3:Our engineer can do a door-to-door instruction training service at your local site if you need.
Quality Guarantee & After-Sales Services:
The guarantee period of quality shall be 36 months counting from the date on which the commodity arrives at the port of destination. Except the damage artificially, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid.
Contact Us
Perfect Laser Co., Ltd. (China)
Contact: Nicole / Sales DepartmentTel: 0086-27-86791986 Fax: 0086-27-86775865 MP: 0086-136 5988 6768 Contact: Nicole / Sales Manager

Add: HengRuichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Wuhan, Hubei, China(430200)

---
