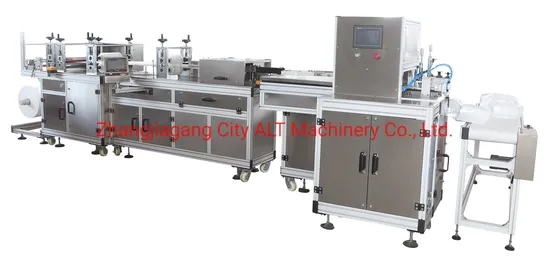

High Speed 140PCS/Min Nonwoven Cap Making Machine Surgical Cap Machine

Product Description

high speed 140pcs/min nonwoven cap making machine surgical cap machine
A Process Description :
Elastic, non-woven fabric feeding--Edge Folding--shaping--Welding
--cutting------packing
Material: non-woven fabric(10g-15g) ,material roll width: 48cm
elastic: double elastic or single elastic
packing: plastic bag, 100pcs/bag
B Technical Parameter :
Supply Power: AC380V 50HZ
Power : 9kw
Speed : 0-140pcs/minute
Dimensions : 5600*1500*1500mm(L*W*H)
Net Weight:1000kg
C Operating Program
1.Adjust the non-woven fabric plate and tension equipment.
2.Pull the non-woven fabrics into folding and welding manually.
3. Elastic feeding and pull into the Ultrasonic welding.
4.Open the main machine slowly, then start to welding and cutting.
D. INSTRUCTIONS: Ultrasonic : 3sets (Shanghai) Motor: TaiWan "YongKun" 3.Touch screen: TaiWan "Wei- Lun"
4.Inverter: TaiWan "Sunfar"
5.PLC: Japan "Mitsubishi"
6.Sensor: Japan"OMRON"
7.servo motor: 8 sets(delta)
8. servo reducer:8 sets(delta)
9.Cylinder: Airtac
10. The electromagnetic valve: Airtac
11. conveyor belt:1 pcs
E Maintenance
1.Please start the ultrasonic welding equipment before open the main machine to avoid the superimposed load damage the ultrasonic equipment.
2.Adjust the ultrasonic mould pressure, too big may burnout it,too small may press unwell.
3.The pulling should be in balance when elastic feeding, or it may folding unwell.
F Advantages
1.This machine has aluminum alloy rack and will not get rusted permanently.
2.It's touch-operated.
3.With imported brake and motor,it has low noise.
4.With ultrasonic welding, automatically controls tension.
5.With no manual operation from feeding materials.
Payment: After 30% of the total value is paid in advance by (T/T), The left 70%
should be paid by (T/T) after you check up the finished machine. And the cargo
will be delivered after all the payment arrives at our account.
Delivered time: 60days
Package: Wooden packing
Warrant term: 1 year
Installation and test: The buyer should pay the round tickets, visa fee, food and accommodation in your country and our engineers $80 per day if you need our training and installation abroad.
Zhangjiagang city ALT machinery co.,ltd

---
