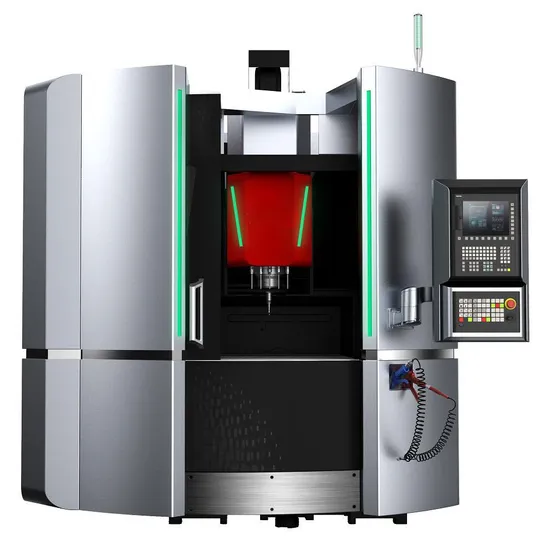

High Precision 5-Axis CNC Vertical Machining Center for Sale

Product Description

High Precision Factory Price CNC Machine Tools Vertical Machining Center 5axis CNC Machine
Product Description

Main parts	Parts Features
X/Y/Z/A/C axis travel	700*420*330mm-±120°*±360°
DD 5-axis table size	Φ 250(Max. piece Φ 350)
Iead screw	Japan NSK ф40-10(Hollow oil-cooled)
Guideway	INA 45 Ball line rail
Cutting feed	20m/min
Rapid feed	30m/min
T-slot size	12mm
XYz axis positioning accuracy and repeatability	0.004/0.002
A-axis positioning accuracy and repeatability	10″/8″
C-axis positioning accuracy and repeatability	6″/5″
A-axis rated torque and maximum torque	131.7/527.8N*M
C-axis rated torque and maximum torque	55.9/251.9N*M
A-axis braking mode and braking torque	Air brake / 300N *M
C-axis braking mode and braking torque	Air brake / 150N *M
Bench up to ground height	940mm
Distance from workbench to spindle end surface	150-480mm
Maximum bench load (average load)	Horizontal 50Kg; Vertical 30Kg
Distance from the spindle center to the front of the fuselage	680mm
Maximum work size	Φ350*280mm
Spindle type	150 Electrospindles
The highest speed of the main shaft	20000rpm
The principal shaft is rated power	20Kw
The main shaft is rated torque	30.7N*M
Spindle cooling	water-cooled
spindle taper	HSK-A63
Maximum capacity of the knife library	24T
Tool specification	A63
Maximum diameter (no adjacent knife)	120mm (160mm)
Tool length	250mm
Knife weight	5Kg
Three-axis motor power	3/3/3Kw
Outline dimensions of the machine tool	2260*3200*2650mm (including rear chip conveyor)
Machine heavy	6500Kg

Anoher Advantages
• Step into the future of manufacturing with our state-of-the-art production environment. Our commitment to precision and efficiency ensures exceptional outcomes, rewriting the standards of excellence and achieving unparalleled success in the industry.
Behold the technological marvels in our arsenal - a sophisticated range of imported machinery. Our collection includes horizontal and vertical machining centers, high-precision CNC boring machines equipped with rotating tables, and gantry guideway grinding machines. Together, they guarantee superior workpiece accuracy, enhancing assembly precision and extending the durability of our products.
• State-of-the-Art Detection Techniques
Harnessing the power of advanced laser technology, we execute meticulous testing and calibration of positioning accuracy. Our process adheres to the stringent German VDI3411 inspection standards, conducting five exhaustive tests per standard, ensuring precision that is second to none.
Each machine tool undergoes rigorous processing tests prior to dispatch, consistently exceeding industry benchmarks for processing accuracy, thus ensuring superior performance.
Product sample
• Revolutionize productivity with our cutting-edge Automated 4-Axis CNC Drilling Milling Center. This advanced masterpiece combines milling, drilling, and tapping functionalities, setting new standards in precision and performance. Perfect for vertical machining, it transforms your production process, enhancing efficiency and precision.
• Master unparalleled precision with our expertly crafted CNC machine. Designed to tackle a vast spectrum of materials - from aluminum and steel to copper and non-metal profiles - our machine elevates craftsmanship, ensuring every project is a masterpiece of meticulous detail.
• Propel your production capabilities across various industries such as 3C electronics, rail transportation, aerospace, and linear module guide rails with our versatile CNC machining solutions. Our cutting-edge technology guarantees unmatched versatility and superior performance, expanding the horizons of possibility.
Packaging & Shipping
•Highly Protective: Our expertly designed packaging solutions ensure the Vertical CNC Drilling Machine Center is immaculately safeguarded during transit. By implementing cutting-edge protective measures, we prevent any potential damage, ensuring the product arrives in pristine condition, providing you with unparalleled peace of mind.
•Structural Stability: With precision-engineered packaging, we guarantee the machine's structural integrity remains flawless. Every component is securely enclosed to ensure the machine arrives ready for seamless operation immediately upon unpacking.
•Environmentally Friendly and Recyclable: Reflecting our steadfast commitment to sustainability, our packaging materials are robust yet eco-conscious. Fully recyclable, our solutions reduce environmental impact, marrying superior protection with responsible environmental stewardship, embodying our innovative approach to both technology and packaging.
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments with a streamlined process to prioritize your order. A 40% initial deposit secures your purchase, and the remaining 60% balance is due before shipment. This ensures a smooth, efficient transaction and timely delivery.
2. What are your trade terms?
A: Our flexible trade terms include FOB, CFR, and CIF, providing you with the versatility to choose the most convenient and cost-effective option tailored to your specific requirements.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we ensure your order is ready within 30 days. Customized or special machines may require additional time. Place your order according to our schedule for timely and reliable delivery.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set. We offer a comprehensive one-year warranty, providing you with peace of mind and satisfaction.
5. How are the machines packaged?
A: Each machine is meticulously packed in a sturdy wooden case to ensure it arrives in perfect condition, protecting your valuable investment.
6. How can I choose the most suitable machines?
A: Provide us with your specifications, and we will recommend the most suitable model tailored to your precise needs. Alternatively, you can select the exact model yourself.
Alternatively, you can send us your product drawings, allowing us to identify the ideal machine configuration to meet your specific requirements.

---
