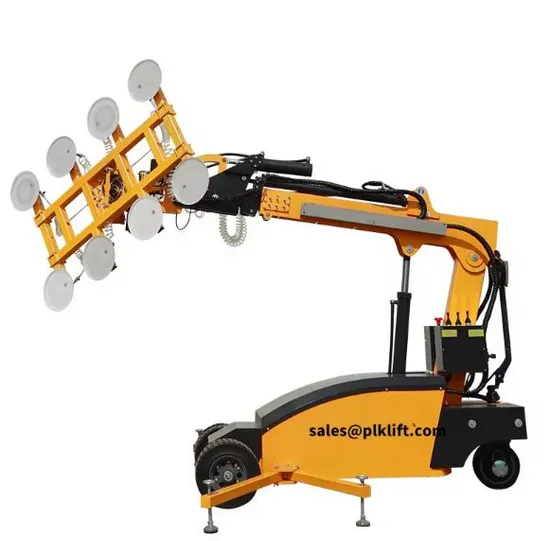

200kg-800kg 3m-5m Mobile Glass Loading Machine Vacuum Lifter

Product Description

300-800kgs High-End Heavy Duty Electric Mobile Vacuum Lifter
Introduction:
GL-LD series Vacuum Lifter: small size, easy to transport.
Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with vacuum suction caps.

Model Type		GL-LD-300	GL-LD-400	GL-LD-500	GL-LD-600	GL-LD-800
Load Capacity		300kg (retract) 150kg (extend)	400kg (retract) 200kg (extend)	500kg (retract) 250kg (extend)	600kg (retract) 300kg (extend)	800kg (retract) 400kg (extend)
Lifting Height		3500mm	3500mm	3700mm	3700mm	4500mm
QTY of Suction Cap		4pcs	4pcs	6pcs	6pcs	8pcs
Rubber Suction Cap		Ø300mm	Ø300mm	Ø300mm	Ø300mm	Ø300mm
Maintenance-free Battery		2x12V/80AH	2x12V/100AH	2x12V/120AH	2x12V/120AH	2x12V/120AH
Battery Charger		Smart Charger	Smart Charger	Smart Charger	Smart Charger	Smart Charger
Drive motor		24V/1200W	24V/600W	24V/900W	24V/900W	24V/1200W
Lifting Motor		24V/2000W/5L	24V/2000W/5L	24V/2000W/5L	24V/2000W/5L	24V/2000W/12L
Chassis L*W		2660*810mm	2660*810mm	2800*810mm	2800*810mm	2800*810mm
Driving Wheel		Ø250x80mm	Ø250x80mm	Ø300x100mm	Ø300x100mm	Ø300x125mm
N.W/G.W		1000/1020kg	1100/1130kg	1200/1230kg	1400/1440kg	1600/1650kg

Advantages
1. Integrated control system secures quick and automatic positioning vertically and horizontally by a single push on a button.
2. DC24V reliable actuators for lifting, extension and tipping. efficient and precise. Self propelling, various circuit vacuum suction.
3. Attractive price, staff saving, strong improvement of working environment.
4. Vacuum lifter are dealt with shot blasting and stoving varnish, high anti-corrosion function.
5. High quality pump station make the vacuum lifter lifts and falls very stably.
6. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
7. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
8. Brief structure make it much easier to operate and maintain.
9. Up to American standard ANSI/ASME and Europe standard EN1570.

---
