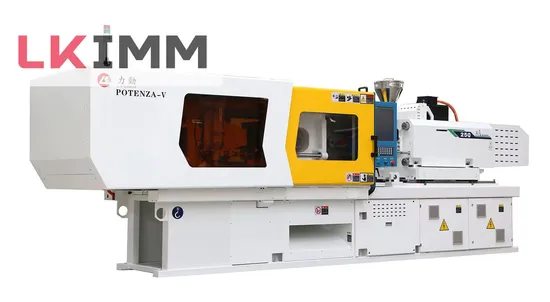

Elettrica 250 Ton Plastic Injection Molding Machine

Product Description

Brief Introduction
LK group specializes in the design manufacture and sales of die casting machines, high precision injection molding machines, CNC machine centers, and industrial integrated control systems. Our market share of die casting machines is over 60%, the injection molding machine ranks among the top 5 in China.
We have 12 companies worldwide, 10 in domestic China, 1 in Taiwan and 1 acquired company IDRA in Italy, it is one of the world's leading die casting machine manufacturers. Our injection molding machine centers are Zhongshan in Guangdong and Ningbo in Zhejiang.
There are over 60 sales and service centers in the world with high-quality after-sales service. Our 24-hour prompt response system provide all-around fully coverage customer service.
Elettrica series 100 ton - 450 ton
Key features
Direct drive injection and clamping axis
Servo hydraulic auxiliary axis for corepull
Electric servo motor ejector and metering axis
Automatic clamping force adjustment
European technology
Use of application
Power tool, Personal Care, Medical, Automotive, Optical, Food industry
Technical Parameter List

	ITEM	UNIT	EL250
Injection Unit	Shot Weight	g	229	290	358
	Screw Diameter	mm	40	45	50
	Injection Volume	cm3	251	318	392.5
	Injection Pressure	MPa	260	205	165
	Injection Holding Pressure	MPa	205	165	130
	Injection Rate	cm3/s	201	254	314
	Plasticizing Capacity	Kg/hr	89	128	173
	Injection Speed	mm/s	160
	Nozzle Pressing Force	kN	45
	Screw Speed	r/min	350
Clamping Unit	Locking Force	kN	2500
	Die Height (Min.-Max.)	mm	230-620
	Opening Stroke	mm	580
	Space Between Tie Bars	mm	660*620
	Ejector Stroke	mm	150
	Ejector Force	kN	55
Others	Heating Capacity	kW	18
	Minimum Mold Height	mm	430*405
	Machine Dimensions (L×W×H)	mm	7400*1700*2400

Products Display
Showroom Review
Factory Review

---
