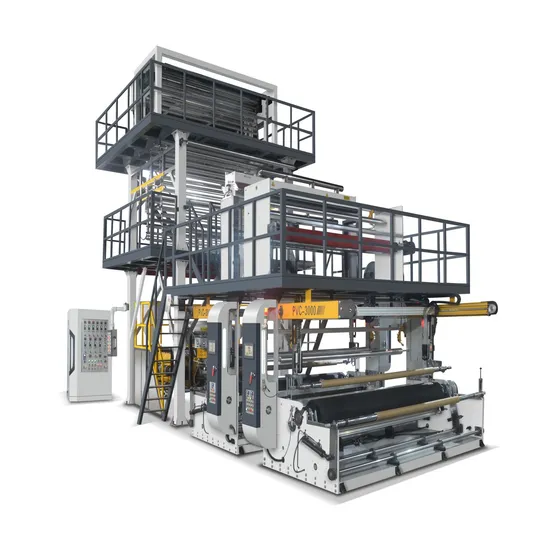

High Speed PE Single Layer Rotary Die Head and Double Winder Plastic Film Blowing Extrusion Machine

Product Description

Product Description
Single Screw Mono Layer Extruder Film Blowing Machine With Dosing system
Use:
It is used for blowing the plastic laminated film of low density polyethylene (LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE)etc, Which are widely used for packing liquid, printed base material, products for export and industrial products, etc.
Description
1. The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment.
2. The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.
3. Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll- changing easy.
Product Parameters

SPECIFICATION	MODEL	140X1X3200
FEATURE	SUITABLE MATERIAL	LDPE,LLDPE
	LAYER NUMBER	1-Layer
	MAX OUTPUT	250-300KG/H
	MAX FILM WIDTH	3000MM
	MACHINE HEGIHT	10M
EXTRUSION UNIT	SCREW DIAMETER	Φ140X1
	SCREW L/D RATIO	30/1
	SCREW MATERIAL	BIMETALLIC
	BARREL THERMO CONTROL	8X1
	BARREL COOLING FAN	200WX8X1
	SCREEN CHANGER	MANUAL
	DRIVING MOTOR	135KWX1
	GEARBOX	#315 SG
DIE UNIT	DIE HEAD	LDPEΦ 750MM
	DIE TYPE	ROTARY DIE WITH AIR RING ROTARY SYSTEM (LEFT AND RIGHT)
	DIE THEROMO CONTROL	2
	AIR RING	DUAL LIP
	FLANGE THERMO CONTROL	2
	AIR BLOWER	18.5 KW WITH INVERTER
TAKE UP UNIT	BUBBLE CAGE MATERIAL	ALUMINUM
	TOP NIP MATERIAL	ALUMINUM
	TAKE UP ROLL MATERIAL	HIGH TEMP RUBBER
	TAKE-UP ROLLER LENGTH	3200MM
	GUSSET	INCLUDED
	PINCH PATTERN	PNEUMATIC
WINDING UNIT	WINDING TYPE	DOUBLE AUTOMATIC WINDER
	WINDING ROLLER LENGTH	3200MM
	WINDING SHAFT	AIR SHAFT 4 PCS
	BANANA ROLLER	INCLUDED 3 PCS
	MAX DIA.OF WINDED ROLL	600MM
	FILM SLITTING	TWO SIDE KNIFE WITH DEVICE OF WASTE FILM REWINDER
	WINDING MOTOR	TORQUE MOTOR WITH INVERTER (DALTA TAIWAN 3 PCS)
PARTS INCLUDED	AUTOMATIC MATERIAL LOADER(380V)	INCLEDED

Details Information

Workshop
Welcome to contact us for more details and prices!!!
Wenzhou brother union imp&exp Co., Ltd is a professional manufacturer of HDPE / LDPE / LLDPE blown film machine, bag making machine ,PE recycle machine and flexo printing machine. "HUACHU MACHINERY" is our brand name , We are committed to creating high-end Chinese-made brands with better quality and stricter details. Insist on researching and development, always striving for innovation and perfection. Innovation, Quality, Service and Satisfactory are our conceptions of lasting conduct.
CONTACT:
Sales:Rahma Zhao
A. When your company was found?
B. our sales team has more than 15 years experience in the plastic machinery industry.
A. What are products do you supply?
B. We are manufacturer of Plastic/Biodegradable film blowing machine,Bag making machine,printing machine,plastic recycling machine etc.
A.How about your products warranty ?
B.One year(12 months) Warranty will be provide from the date of container arrive Clients'factory.If machine parts are broken due to quality problem within warranty period, we will send new part for free( Any artificial misuse or destory prepensely is not included within the limitation of Quality Guarantee).
A. What are your Payment and delivery terms?
B.Payment term:
1) T/T, 30% as prepaid ,70% before delivery
2) L/C, 30% by T/T ,70% as L/C at sight, and for clients from Bangladesh&Ethiopia ,we accept 100% L/C at sight.
Delivery time: Standard will be in 30-40 working days
A.What Technical Support we can get if order machines
B.We can provide Installation Drawings,Basic operating instructions,Operation explanation through Video&Photos,Online video calling for technical support if necessary.

---
