VH Series V Type High Efficient Mixer

Product Description

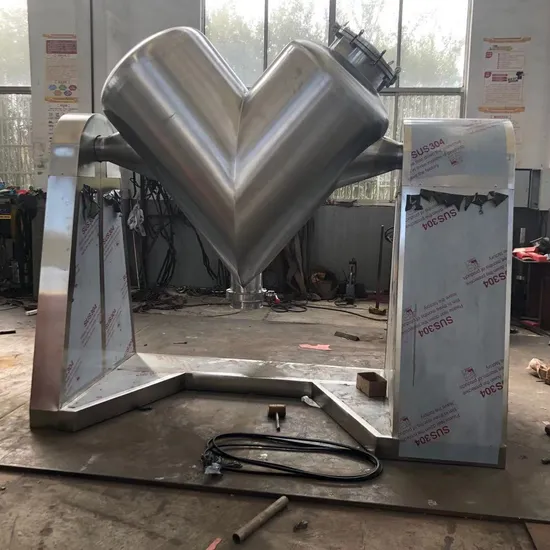

VH series V-type high efficient mixer
Application:
This machine has the following distinguishing features, no blind eagle in the cylinders, no accumulation of materials, high speed, and short mixing time. With the body made of stainless steel and both inner and outer walls polished, the cylinders have elegant appearance. The charging of materials can be made either by manual operation or through vacuum suction. For discharging, rotating valves and rapid swivel heads are adopted. This mixer is applicable for mixing powdery or granular materials in pharmaceutical and other industries. It consists of two V-type cylinders of different altitudes, and through mechanical transmission the materials in these cylinders are made to move back and forth and turn over again and again, thereby achieving the goal of uniform mixing.
Technical parameter:

Size	Total volume L	Working volume L	Feeding amount kg	Speed rpm	power kw	weight kg
VH-50	50	25	15	25	0.55	300
VH-100	100	50	45	20	0.75	400
VH-300	300	150	90	20	1.1	600
VH-500	500	250	150	18	1.5	700
VH-1000	1000	500	300	15	3	900
VH-1500	1500	750	450	12	4	1000
VH-2000	2000	1000	600	12	5.5	1200
VH-3000	3000	1500	900	9	5.5	1500
VH-4000	4000	2000	1200	9	7.5	1700
VH-5000	5000	2500	1500	8	7.5	1900
VH-6000	6000	3000	1800	8	11	2000

---
