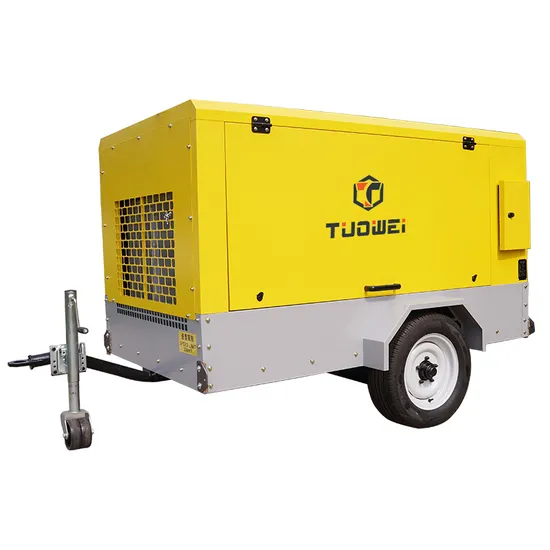

Similar Atlas Copco Trailer Mounted Portable Mobile Diesel Industrial Mining Screw Air Compressor 98-1200 Cfm for Drilling Machine

Product Description

Product Description
1.Gas Control System: It is simple and reliable. Inlet rate from 0 to 100% and be adjusted automatically depending on the gas consumption. Automatically adjust the engine throttle to save diesel fuel.
2.Microcomputor Intelligent Control: Air compressor discharge pressure, exhaust gas temperature, engine speed, oil pressure, water temperature and fuel tank level operating parameters with automatic alarm and shutdown protection.
3.Multi-Stage Air Filter and Large Oil-Water Cooler: It is not only suitable for dusty work environment, but it is suitable for high temperature and high altitude environment.
4.Parts and Components: They can be maintained within the accesible range which is convenient and easy.
5.Covenient: Easy to move in rough terrain.Each compressor has lifting rings on the top for safe hoisting and transportation.
Product Parameters

Single Stage Compression Portable Diesel Screw Air Compressor
Model	Capacity	Pressure	Diesel engine type	Weight	Dimensions
	m3/min	bar		KGS	L×W×H mm
SYC-3/7	2.8	7	32kw	1000	2200*1560*1400
SYC-5/7	5	7	41KW	1100	2821X1470X1361
SYC-6/8	6	8	55kW	1400	3750×1920×1700
SYC-7/8	7	8	4D80-K20,58kW	1400	3750×1920×1700
SYC-8/7	8	7	65kw	1400	3750×1920×1700
SYC-8/8	8	8	65kw	1400	3750×1920×1700
SYC-9/8	8.8	8	75kW	1600	3750×1920×1700
SYC-10/7	10	7	YC4D95Z-K20,70kW	1900	3900×1920×1700
SYC-8.5/14	8.5	14	4BTA3.9-C125,93kW	1900	3900×1920×1900
SYC-10/10	10	10	4BTA3.9-C125,93kW	1900	3900×1920×1900
SYC-10/13	10	13	4BTA3.9-C125,93kW	2050	4080×1980×2350
SYC-13/10	13	10	4BTA3.9-C125,93kW	2050	4080×1980×2350
SYC-12/7	12	7	4BTA3.9-C125,93kW	2050	3900×1980×1900
SYC-12/12	12	12	6BTA5.9-C180,132kW	2380	4080×1980×2350
SYC-12/13	12	13	6BTA5.9-C180,132kW	2750	4080×1980×2350
SYC-13/13	13	13	6BTA5.9-C180,132kW	2750	3450×1520×2220
SYC-17/7	17	7	6BTA5.9-C180,132kW	3350	3380×1640×2350
SYC-15/13	15	13	YC6A240-20,177kW	3350	3380×1650×2500
SYC-16/13	16	13	6CTA8.3-C215,158kW	3350	3980×1800×2450
SYC-13/17	13	17	6CTA8.3-C215,158kW	3400	3780×1980×2350
SYC-17/14.5	17	14.5	6CTA8.3-C260,194kW	3400	3980×1800×2450
SYC-19/14.5	19	14.5	6CTA8.3-C260,194kW	3400	3980×1800×2450
SYC-18/17	18	17	6CTA8.3-C260,194kW	3400	3980×1800×2450
SYC-20/13	20	13	6CTA8.3-C260,194kW	3400	3980×1800×2450
SYC-22/8	22	8	6CTA8.3-C260,194kW	4000	4580×1950×2600
SYC-26/8	26	8	6CTA8.3-C260,194kW	4000	4580×1950×2600
SYC-22/14	22	14	6CTA8.9-C325, 239kW	4500	4580×1950×2600
SYC-27/10	27	10	6CTA8.9-C325, 239kW	5000	4600×1950×2850
SYC-30/10	30	10	6CTA8.9-C325, 240kW	5000	4600×1950×2850
Two Stages Compression Portable Diesel Screw Air Compressor
SYC-19.5/19	19.5	19	6CTA8.3-C260,194KW	3700	3650*1800*2500
SYC-22/20	22	20	6LTA8.9-C360,265KW	4500	4600*1950*2850
SYC-26/20	26	20	6LTA8.9-C360,265KW	4850	4600*1950*2850
SYC-27/22	27	22	NTA855-P400	5000	4600*1950*2850
SYC-26/25	26	25	QSZ13-C500	5100	4700*2100*2500
SYC-21/35	21	35	QSZ13-C500	5100	4700*2100*2500
SYC-33/25	33	25	QSZ13-C550	5200	4700*2100*2500
SYC-26/35	26	35	QSZ13-C550	5200	4700*2100*2500

Company Profile
After Sales Service Our service
1.Pre-sale service:
Act as a good adviser and assistant of clients enable them to get rich and generous returns on their investments .
1.Select equipment model.
2.Design and manufacture products according to client's special requirement ;
2.Services during the sale:
1.Pre-check and accept products ahead of delivery .
2. Help clients to draft solving plans .
3.After-sale services:
Provide considerate services to minimize clients' worries.
1.Complete After-sales service,professional engineers available to service machinery at home or oversea.
(On-site service requires the customer to bear the cost)
2. 24 hours technical support by e-mail.
3.Other essential technological service.

FAQ Q1: What is the rotor speed for the air end?A1: 2980rmp.Q2: What's your lead time?A2: usually, 5-7 days. (OEM orders: 15days)Q3: Can you offer water cooled air compressor?A3: Yes, we can (normally, air cooled type).Q4: What's the payment term?A4: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.Q5: Do you accept customized voltage?A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.Q6: What is your warranty for air compressor?A6: One year for the whole air compressor(not including the consumption spare parts) and technical supports can be provided according to your needs.Q7: Can you accept OEM orders?A7: Yes, OEM orders are warmly welcome.Q8: How about your customer service and after-sales service?A8: 24hrs on-line support, 48hrs problem solved promise.Q9: Do you have spare parts in stock?A9: Yes, we do.Q10: What kind of initial lubrication oil you used in air compressor?A10: TOTAL 46# mineral oil.
