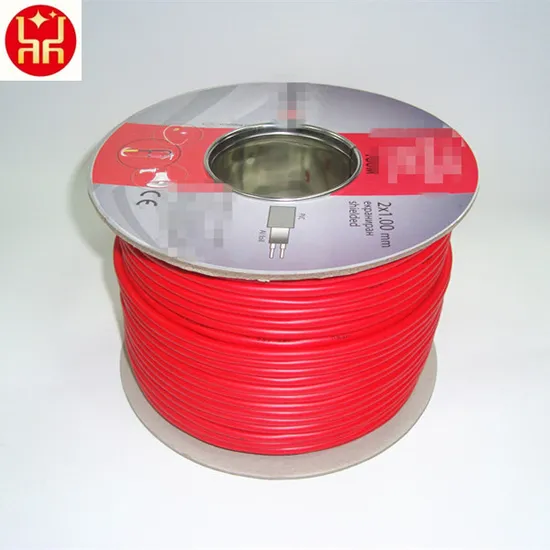

Red Fire Alarm Cable 2 Cores 2.5mm Fire Resistance Cable

US$0.10-0.80 10,000 Meters (MOQ)

Basic Info.

Model NO.
DX-FA-01
Application
Overhead, Heating, Underground, Fire Alarm System
Conductor Material
Copper
Sheath Material
PVC
Insulation Material
PVC
Material Shape
Round Wire
Range of Application
LSOH
Certification
ISO9001, CE, RoHS
Brand
Dx
Transport Package
Plastic Reel
Specification
100m
Trademark
dx
Origin
Jiaxing
HS Code
85444911
Production Capacity
500000m/Year

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
3.000kg

Product Description

Product DescriptionRed fire alarm cable
ProductFire Alarm Cable
ConductorDiameter Solid 22/4, 18/2,16/2,14/2,12/2 etc.
Material Bare Copper(100%)
InsulationAvg. Thickness 0.254 mm
Material PVC (Fire retardant)
Nom. Lay Length 114mm
Color Black,Red,White,Green
JacketAvg. Thickness 0.508mm
Material PVC(Fire retardant)/LSZH
Ripcord Yes
Color Red
ShieldedUnshielded Unshielded
Shielded Al Foil with drain wire
Detailed PhotosProduct Parameters

S/No.
Specification
Structure
Outside Diameter
SP-AL-1019
1*2*0.2Square
1*2*1/0.5mmBC+1.6mm antiflaming PVC +0.4TCU drain wire+ Aluminum foil twist
O.D:4.9mm fire resistance PVC
SP-AL-1020
1*2*0.5Square
1*2*1/0.8mmBC+2.0mm antiflaming PVC +0.4TCU drain wire + Aluminum foil twist
O.D:5.6mm fire resistance PVC
SP-AL-1021
1*2*0.75Square
1*2*1/0.97mmBC+2.2mm antiflaming PVC + 0.4TCU drain wire + Aluminum foil twist
O.D:6.5mm fire resistance PVC
SP-AL-1022
1*2*1.0Square
1*2*1/1.15mmBC+2.4mm antiflaming PVC +0.4TCU drain wire + Aluminum foil twist
O.D:6.8mm fire resistance PVC
SP-AL-1023
1*2*1.5Square
1*2*1/1.38mmBC+2.8mm silicon+0.4TCU drain wire + Aluminum foil twist
O.D:7.0mm fire resistance PVC
SP-AL-1024
2*2*0.2Square
2*2*1/0.5mmBC+1.6mm antiflaming PVC +0.4TCU drain wire + Aluminum foil twist
O.D:4.8*8mm fire resistance PVC (Flat Sheath)
SP-AL-1025
2*2*0.5Square
2*2*1/0.8mmBC+2.0mm antiflaming PVC +0.4TCU drain wire + Aluminum foil twist
O.D:5.6*9.6mm fire resistance PVC (Flat Sheath)
SP-AL-1026
2*2*0.75Square
2*2*1/0.97mmBC+2.2mm antiflaming PVC +0.4TCU drain wire + Aluminum foil twist
O.D:6*10.4mm fire resistance PVC (Flat Sheath)
SP-AL-1027
2*2*1.0Square
2*2*1/1.15mmBC+2.4mm antiflaming PVC +0.4TCU drain wire e+ Aluminum foil twist
O.D:6.4*11.2mm fire resistance PVC (Flat Sheath)
SP-AL-1028
2*2*1.5Square
2*2*1/1.38mmBC+2.8mm antiflaming PVC +0.4TCU drain wire + Aluminum foil twist
O.D:7.4*13mm fire resistance PVC (Flat Sheath)
SP-AL-1029
2*2*0.2Square
2*2*1/0.5mmBC+1.6mm antiflaming PVC +0.4TCU drain wire + Aluminum foil twist
O.D:5.6mm fire resistance PVC
SP-AL-1030
2*2*0.5Square
2*2*1/0.8mmBC+2.0mm antiflaming PVC+0.4TCU drain wire + Aluminum foil twist
O.D:6.6 mm fire resistance PVC
SP-AL-1031
2*2*0.75Square
2*2*1/0.97mmBC+2.2mmantiflaming PVC+0.4TCU drain wire + Aluminum foil twist
O.D:7.1mm fire resistance PVC
SP-AL-1032
2*2*1.0Square
2*2*1/1.15mmBC+2.4mmantiflaming PVC+0.4TCU drain wire + Aluminum foil twist
O.D:7.6mm fire resistance PVC
SP-AL-1033
2*2*1.5Square
2*2*1/1.38mmBC+2.8mmantiflaming PVC+0.4TCU drain wire + Aluminum foil twist
O.D:8.5mm fire resistance PVC
Packaging & ShippingPacking length : 40m/roll ,60m/roll ,91.4m/roll 100m/roll , 200m/roll , 300m/roll ; 305m/roll
Inner packing : plastic cover / wooden drum / paper drum ;
Outer packing : 2/4/ 6 roll / carton box ;
Other packing according to customers' request
Company ProfileJiaxing Dingxin Electronic has specialized in manufacturing cable and its parts since 2012.
Our products mainly including audio and video cable, speaker cable, microphone cable, telephone cable, electric wire ,monitor cable, alarm cable, fire alarm cable and related parts& accessories etc.
All cables export only . We have many years of production experience and are familiar with the needs of all regions of the world
Our cable products are exported to all parts of the world by taking advantage of our hard-won reputation, honesty, reliability and quality, Dingxin's goal is to ensure product quality and better serve customers
At the same time, we are looking for global partners overseas. If your company is the end user, distributor or agent of cables, please contact us.
We look forward to working with you in the near future.
