Product Details
Product Description
Product Description

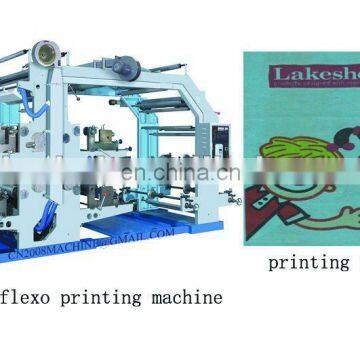

YT Four Colors Flexible Printing Machine
Performance and Characteristics:
Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper,etc. It is a kind of ideal printing equipment for producing paper packing bag for food,supermarket handbag, vest bag and clothes bag, etc.
1.simple operating, soft starting, accurate color register.
2.meter counter can set printing quantity, automatic shutdown, automatic stop-off material.
3.pneumatic landing plate cylinder, automatic mixing ink after lifting.
4.the knurled cylinder with ink, ink evenly.
5.Reliable drying system coordinated with high-speed operation, automatic shutdown circuit. 6,360 degrees continuous and adjustable longitudinal photo checking device.
7. frequency control, adapt to different printing speeds.
8. the roller seats and rewind shelves are loaded moving and stop buttons, easy to operate when the machine is installed.
Main Technical Variables:
Type
| YT-2600
| YT-2800
| YT-21000
|
Max. Web Width
| 600mm
| 800mm
| 1000mm
|
Max.Effective Printing Width
| 560mm
| 760mm
| 960mm
|
Range of Repeat Printing Length
| 191~914mm
| 191~914mm
| 191~914mm
|
Max. Diameter of Roll Material
| 450mm
| 450mm
| 450mm
|
Printing Speed
| 5~50m/min
| 5~50m/min
| 5~50m/min
|
Plate Thickness
| 2.38mm
| 2.38mm
| 2.38mm
|
Total Power
| 8kw
| 10 Kw
| 12Kw
|
Weight of Machine
| 1800kg
| 2000 kg
| 2200 kg
|
Overall Dimension( mm)
| 2300×1860×2145
| 2300×2060×2145
| 2300×2260×2145
|
Company Profile
Wenzhou Xiaohai Import And Export Co., Ltd
We are a Big Group specializing in making all kinds of printing and plastic machines, such as plastic bag whole line machines (film blowing machines, flexo and gravure printing machines, lamination machines, all kinds of bag making machines), disposable glove making machines, plastic cup and paper cup making whole line machines, drink straw making whole line machines, label whole line making machines, and paper cutting whole line machines.
