Product Description
Product Description

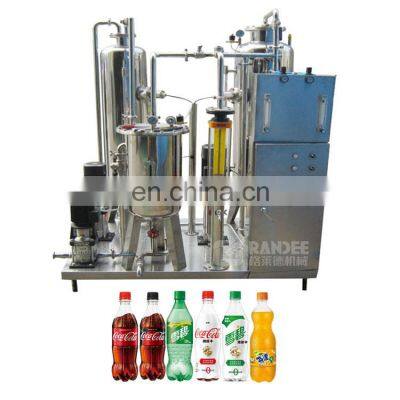

Product DescriptionBeverage Mixer / Mixing Machine / Carbonation Mixer Machine description:QHS model mixing machine is designed with latest technology and used for the mixing of soda and other aerated beverage. The pates that contact the liquid ate all made of fine low carbon stainless steel in accordance with the requirement of food sanitation .PLC technology is adopted to control the pressure and liquid level in the vat .An alarm will be given if there is anything abnormal and the machine has a compact structure .With stable performance and high efficiency ,it is easy to operate .It is an indispensable piece of equipment in beverage production.Pictures of Carbonation Mixer:Technical Data:ModelQHS-3000Capacity (kg/h)3000Mixing ratio range(water and suger:)3:1—6:1Mixing precision≤2%CO2 content4-5mg co2 in 1L waterSupply CO2 pressure (MPa)0.8—1Exchange heat area(m2)6.5CO2 Consumption(m3/h)2.0-2.5CO2 purity≥99.9%Compressed air consumption(m3/h)5For compressed air pressure (MPa)0.6—1Refrigerant mediumGlycol solution Refrigerant temperature(℃)-2Mixing temperature(℃)<4Clean water inlet pressure(MPa)0.1—0.15Syrup inlet pressure(MPa)0.1—0.15Syrup inlet temperature(℃)≤10Drink outlet temperature(℃)1—2Drink outlet pressure(MPa)≤0.65Power (kw)8.4Machine size (L×W×H)(mm)2100×1500×2200Weight (kg)600Related ProductsCarbonated drink washing filling capping machine Capacity: 2000BPH to 20000BPH for 500ml bottle Filling temperature: 3℃ to 8℃Bottle range: 200ml-2250ml Bottle dimater: ≤340mmBottle height: ≤110mm Bottle material: PET bottle Bottle shape: round / flat / square bottle Carbonation mixer and air cooled type water chiller Capacity: 1500liters-20000liters/hr Co2 content: ≥3.5Carbonation mixer and Water chiller Process: Water, syrup, CO2 mixing systemCarbonation mixer: 1500L/Hr, 2000L/Hr,3000L/Hr,5000L/Hr,etc. Co2 content is from 2.0-3.8Water chiller: working with carbonation mixer, the cooling medium of water chiller going to heat plate exchanger of carbonation mixer to cooling carbonation drink to 3 degree to 8 degree (filling temperature) Soda Water Mixing SystemProcess: Sugar melting boiler or High level cutting tank, double filters, syrup pump, blending tank, stroage tankThe output of beverage processing system depending on how many liters per hour for carbonated drink, soda water or juice,etc.Syrup melting boiler: 300L/Hr, 500L/Hr, 1000L/Hr,etc, steam heating or electrical heating type, steam heating boiler will matched fuel oil boiler, but save electricity, eletrical heating type boiler will power-consuming.Blending tank: 1000L/Hr, 2000L/Hr, 3000L/Hr, etc, double layer with warming jacket, motor with blending system Storage tank: 1000L/Hr, 2000L/Hr, 3000L/Hr,etc. double layer with warming jacketBlowing Machine with different options: 1. Semiautomatic Blowing Machine for 800BPH-2000bph from 0.2-2.5L bottle with 2 or 4 cavities. 2. Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle. Full automatic sleeve labeling machineCapacity: 100-350bottles/min can be choosedLabel material: PVC PET OPS,etcBottle material: PET PE PP GlassBottle Diameter: 28 ~ 120mmBottle Height: 15~320mmBottle shape: round, square, ellipse, rectangularLabel length: 30~250mm(max)Label thickness: 0.03~0.13mm Company information Our exhibition FAQ Q1: How to find suitable machine or complete beverage production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for. Q2: What's capacity of blending (mixing) tank?A2: We have 500L, 1000L, 2000L, 3000L, 5000L and etc. Q3: What's capacity of carbonated drink mixer? A3: We have 1500liters/h, 2000liters/h, 3000liters/h, 5000liters/h, 7000liters/h and etc. Q4: What is the material for whole mixing system?A4: Use stainless steel 304 / 316 Q5: What about CIP system ?A5: It have three tank, acid tank, alkali tank and hot water tank, the volume is 500L-3000L, can be customized according to customer requirements Q6: Do you have technical support after we purchased your machines?A6: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q7: If you buy our machines, can you offer us wear-out spare pats?A7: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
>>
