ZICAR four side planer wood working M618A 4 side wood shaper moulder planer for sale

Product Description

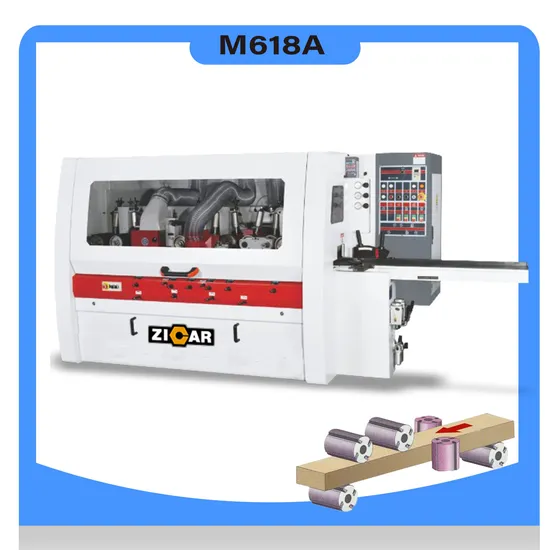

ZICAR Wood Working Four Side Thickness Planer 6 Spindles Moulder Machine M618A
Introduction: Heavy duty four side moulder M623A is compact series, and it's easy to operate.
And it's mainly used to process wooden products, such as square wood, wooden board, decorative molding, wooden floor and etc.
Detailed Photos
Internal Structure
Exquisite production process, the internal structure of the machine is tight and orderly
Quick liftable short material device
This structure effectively improves the feeding of short materials more smoothly, and the auxiliary feeding wheel has a transmission function and is more efficient. The feed wheel can be picked up for easy tool change or calibration
Pneumatic compaction type feed wheel
It can adjust the compaction force in sections, which is conducive to the smooth feeding of different thickness wood
Hard Chrome Plated
Work surface and durable,which can ensure the stable performance of the machine
Product Parameters

Working width	25-180mm
Working thickness	8-120mm
Feeding speed	10-50m/min
Main shaft diameter	1800mm
Spindle diameter	40mm
Axial movement	0-20mm
Main shaft revolution	8000r/min
Pneumatic source pressure	0.6Mpa
First bottom spindle motor	5.5kw
Right side spindle motor	4kw
Left side spindle motor	4kw
First top spindle motor	5.5kw
Feeding motor	4kw
Feed beam rise and fall motor	0.75kw
General motor	22.6kw
Trimming size	Ф145-180mm
First bottom spindle cutter	Ф125-180mm
Right side spindle cutter	Ф125mm
Left side spindle cutter	Ф125-180mm
First top spindle cutter	Ф125-180mm
Dust Outlet diameter	Ф140mm
Feeding wheel diameter	Ф140mm
Overallsize	4100x1630x1750mm
Net weight	3300kg

Product Display
Certifications
Company Profile
FAQ
1.Our Payment term?
L/C and T/T or other ways.
2.Delivery Time?
30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have closely relationshipwith each other,so there is no problem in shipment.
3.Our Warranty?
*One year guarantee from the delivery date of this machine under the normal operation of oneshift per day.
*We will be responsible for the maintenance of damaged part which is under normal situationduring warranty period, and all the round-trip courier transportation cost of damaged/repairedreplacement parts in warranty period should be borne by the buyer. Wearing parts are notincluded.
*24 hour technical support by email or calling
*User-friendly English manual for machine using and maintaining
4.Our srvices?
*One-stop service, meet needs of the customers from individuals to international companies.
*OEM service accepted.
*Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
*After sale Service: experienced and knowledgeable team of technical support , provideengineer oversea service.

---
