Basic Info.
Drainage & Irrigation Mode
Sprinkler Irrigation Equipment
Pump Type
Immersible Pump
Ground Drainage and Irrigation Machinery Type
Pumping Irrigation
Certification
ISO9001:2008, CE
Application Field
Agriculture, Forestry
Flow Rate
7.2m3/H-56.8m3/H
Nominal Diameter of The Water Inlet
45mm
Nozzle Diameter
10mm-24mm
Interface Mode
Flange Interface
Jet Elevation Angle
0-48 Adjustable
Spray Gun Cruise Speed
Two Gear Adjustable, Stepless Adjustable
Transport Package
Export Carton
Specification
76.5*22*25.5cm
Production Capacity
One Hundred Thousand
Product Description

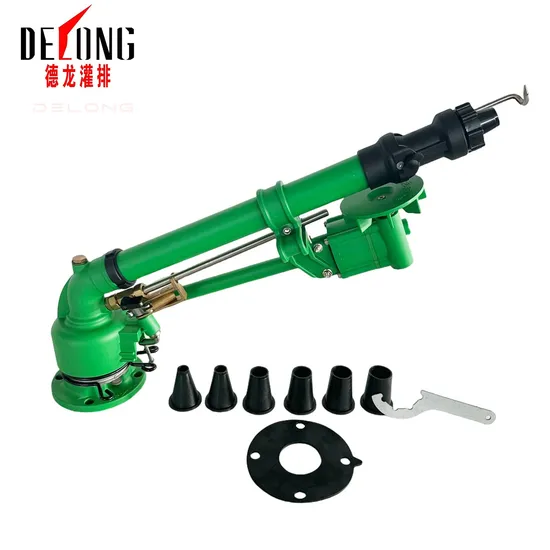

DLPL45T is suitable for irrigation and industrial and mining dust removal. The popularization of water-saving irrigation technology is one of the main ways to solve the agricultural water shortage and ensure the stable and high yield of grain, which has become an important measure to develop agriculture in the water shortage countries in the world.
DLPL45T sprinkler gun can be used in large and medium disc sprinkler, can also be matched with large pointer sprinkler tail gun. Field irrigation project, landscaping, water spraying dust removal, power plant, port, wharf, railway freight yard, coal and coke chemical field and other industrial enterprises and other fields, can effectively dust and dust, greatly reduce PM2.5. This product is equipped with a variety of different caliber nozzles, can realize the flow from 7.2m³/h--56.8m³ / h working pressure 0.2Mpa--0.6Mpa, range of 20m-50m, suitable for different soil, crops, terrain, and scene requirements.
U nozzle diameter
mm | P pressure
kg/cm² | G range
m | Q rate of flow
m³/h |
| 10 | 2 | 20 | 7.2 |
| | 3 | 22 | 8.8 |
| | 4 | 24.5 | 10.2
11,4
|
| | 5 | 27.5 | 11.4 |
| 12 | 2 | 22 | 9.5 |
| | 3 | 25 | 11.6 |
| | 4 | 28 | 13.4 |
| | 5 | 31 | 15.1 |
| 14 | 2 | 24 | 12.3 |
| | 3 | 27 | 15 |
| | 4 | 30 | 17.4 |
| | 5 | 33 | 19.4 |
| 16 | 2 | 26 | 15.4 |
| | 3 | 29 | 18.9 |
| | 4 | 32 | 21.8 |
| | 5 | 35 | 24.3 |
| 18 | 2 | 28 | 19.0 |
| | 3 | 31 | 23.3 |
| | 4 | 34 | 26.9 |
| | 5 | 37 | 30.2 |
| 20 | 2 | 30 | 23.1 |
| | 3 | 33 | 28.6 |
| | 4 | 37 | 32.7 |
| | 5 | 41 | 36.5 |
| 22 | 3 | 36.5 | 34 |
| | 4 | 40.5 | 39.4 |
| | 5 | 44.5 | 44.1 |
| | 6 | 47.5 | 48.3 |
| 24 | 3 | 38 | 40.1 |
| | 4 | 42 | 46.3 |
| | 5 | 46.5 | 51.8 |
| | 6 | 50 | 56.8 |
>>
